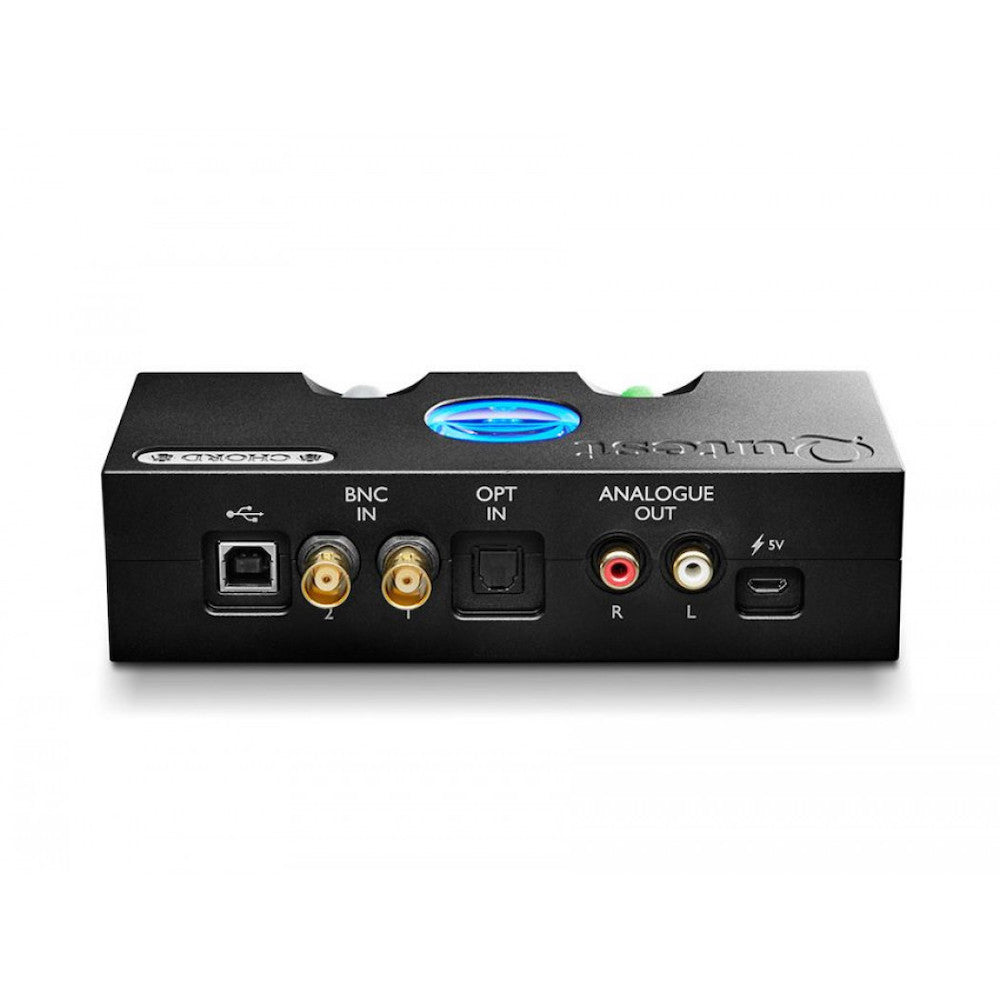

Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernise ageing digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminium billet. The Qutest PCB nestles within a shallow cavity in the solid aluminium chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

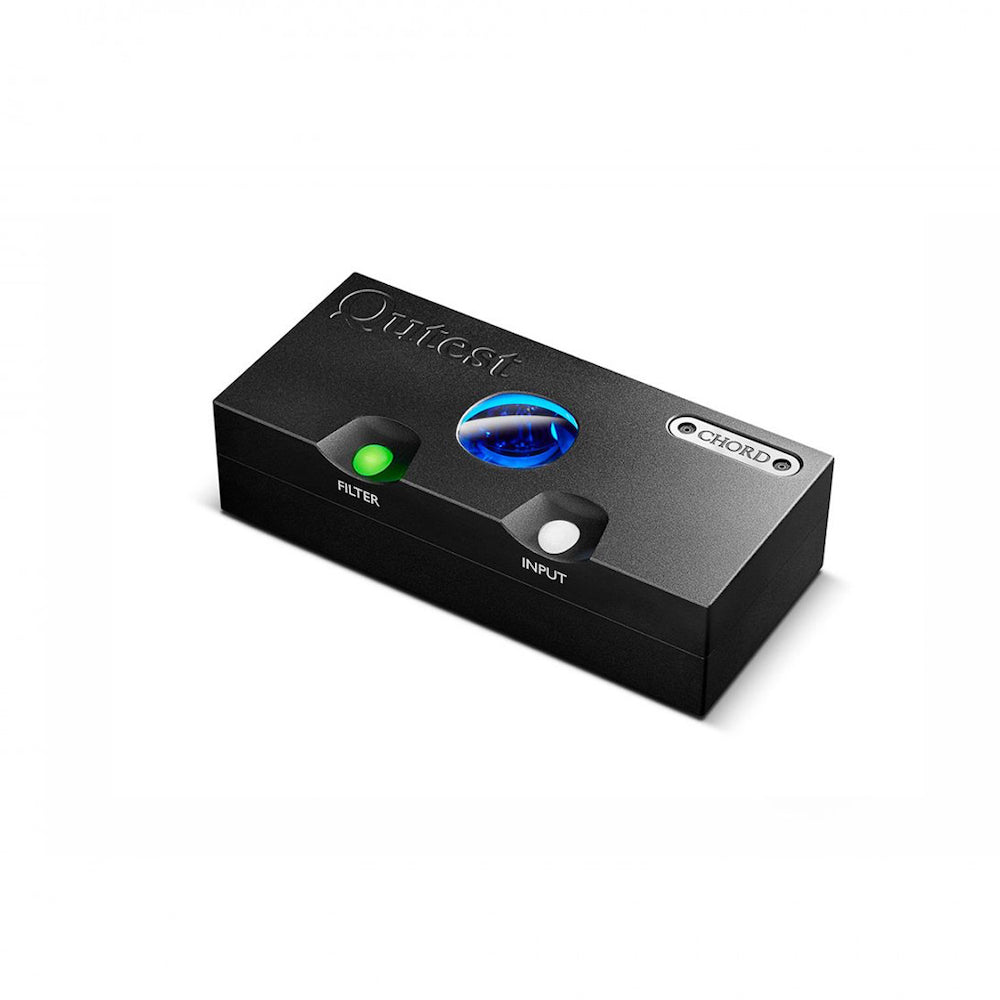

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.
Specifications:
Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
Tap-length: 49,152
Pulse array: 10 element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
THD: <0.0001% 1kHz 3v RMS 300Ω
THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v)
Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
Channel separation: 138dB at 1kHz 300Ω
Weight: 770g
Dimensions: 4.5cm (H) 16cm (W) 8.8cm (D)
Boxed Weight: 1500g
