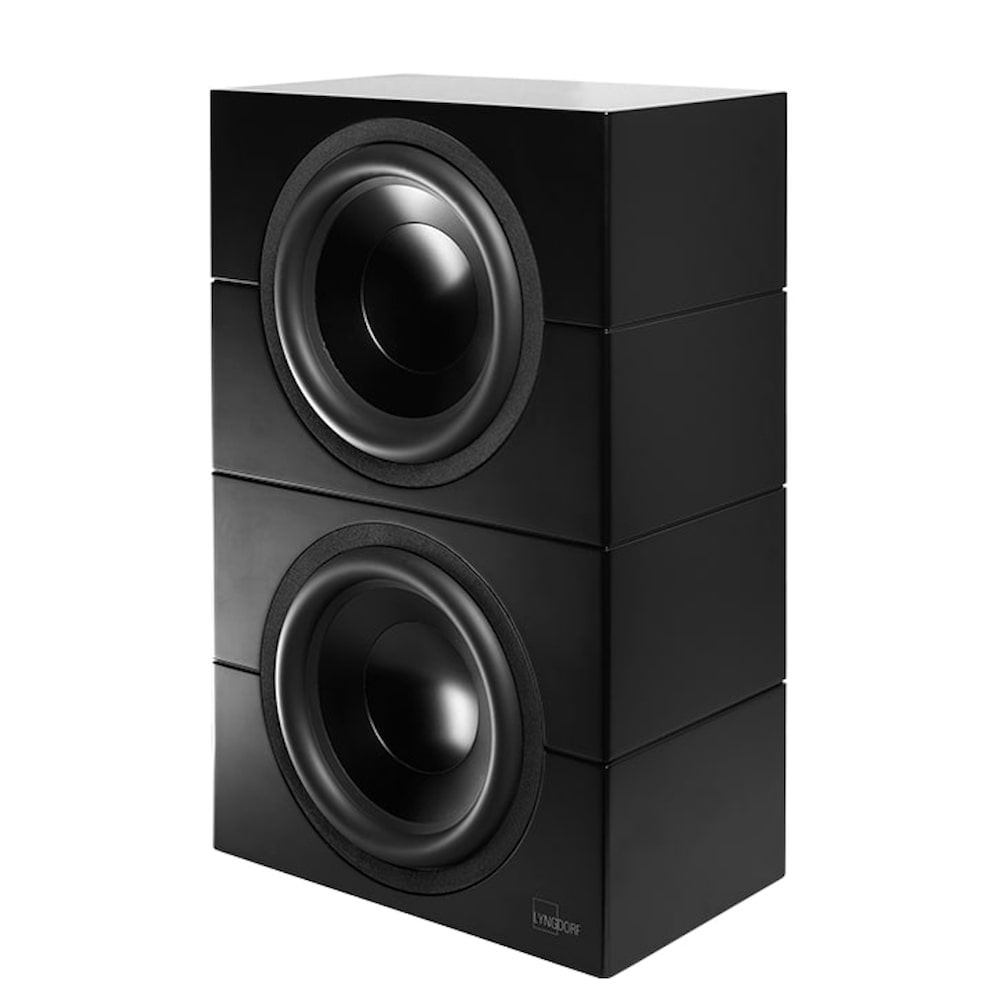

The BW-20 is the company’s largest BW model, extending the line-up of the compact in-room woofers BW-2 and BW-3. The BW-20 is a high-bandwidth woofer, reaching down to 19Hz but also up to 500Hz. This allows a seamless integration with any size front speakers and crossover filter type, and avoids any sound performance gap even if the front speakers are not low-reaching full-range speakers.
Technical Specifications:
Description: Passive boundary woofer, closed
Woofer: Two 12” long throw +/- 20mm, 67mm voice coil, aluminum cone, double
spider, vented magnet
Enclosure: MDF, closed 64 L net
Frequency range: 19 – 500 Hz (-3 dB)
Frequency extension depending on EQ
Nominal Impedance: 4 Ohm
Power handling: 700 W (IEC)
Maximum SPL: 118 dB
Connections: Neutrik speakON
Mounting: Floor standing
Dimensions (W x H x D): 450 x 710 x 270 mm / 17.7 x 28 x 10.6 inch
(Cabinet without spike feet and woofer excursion)
Weight: 35 kg / 77 lb
Finish: Matte black
