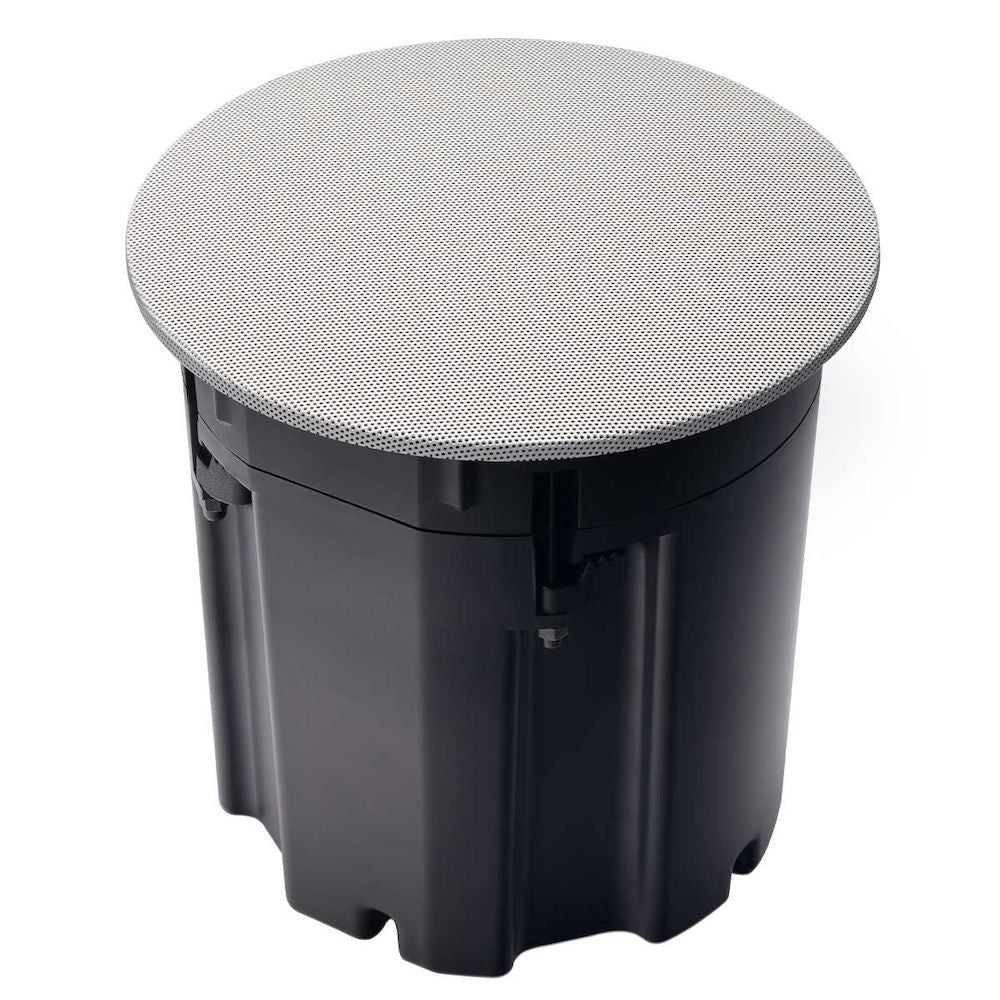

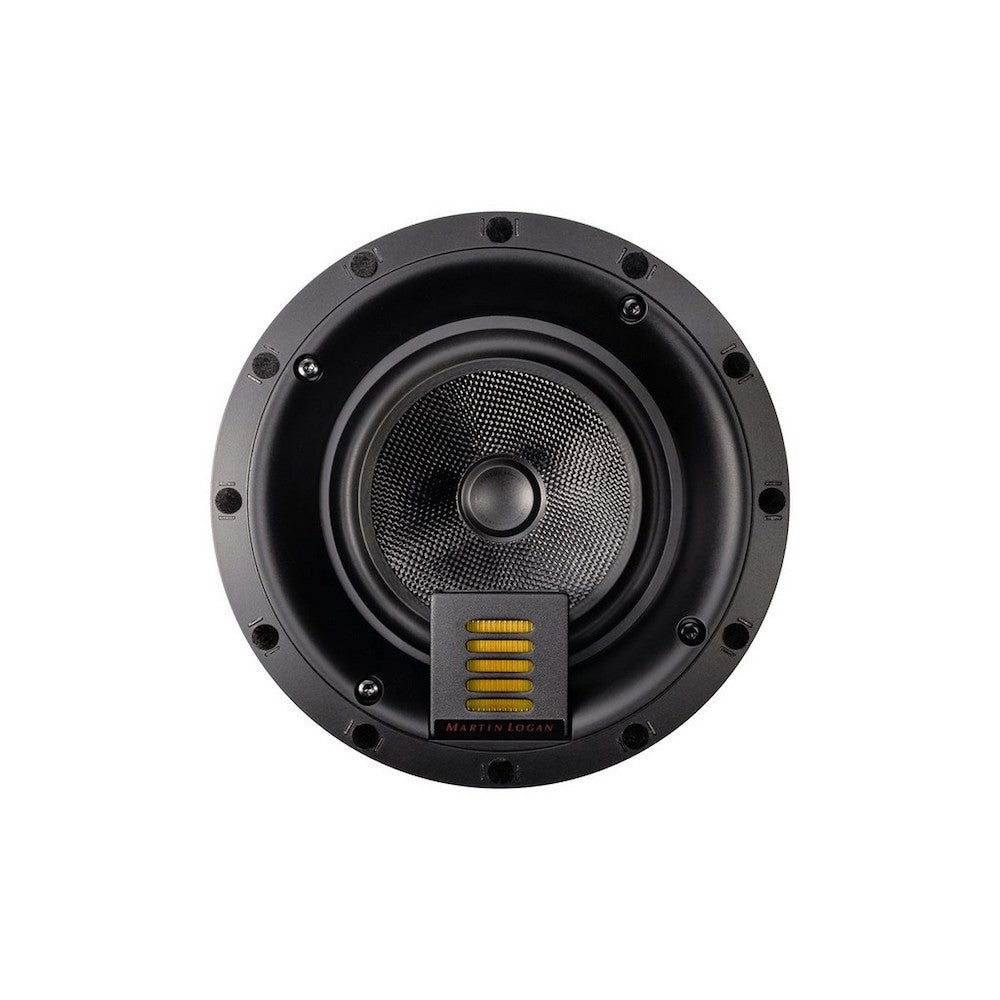

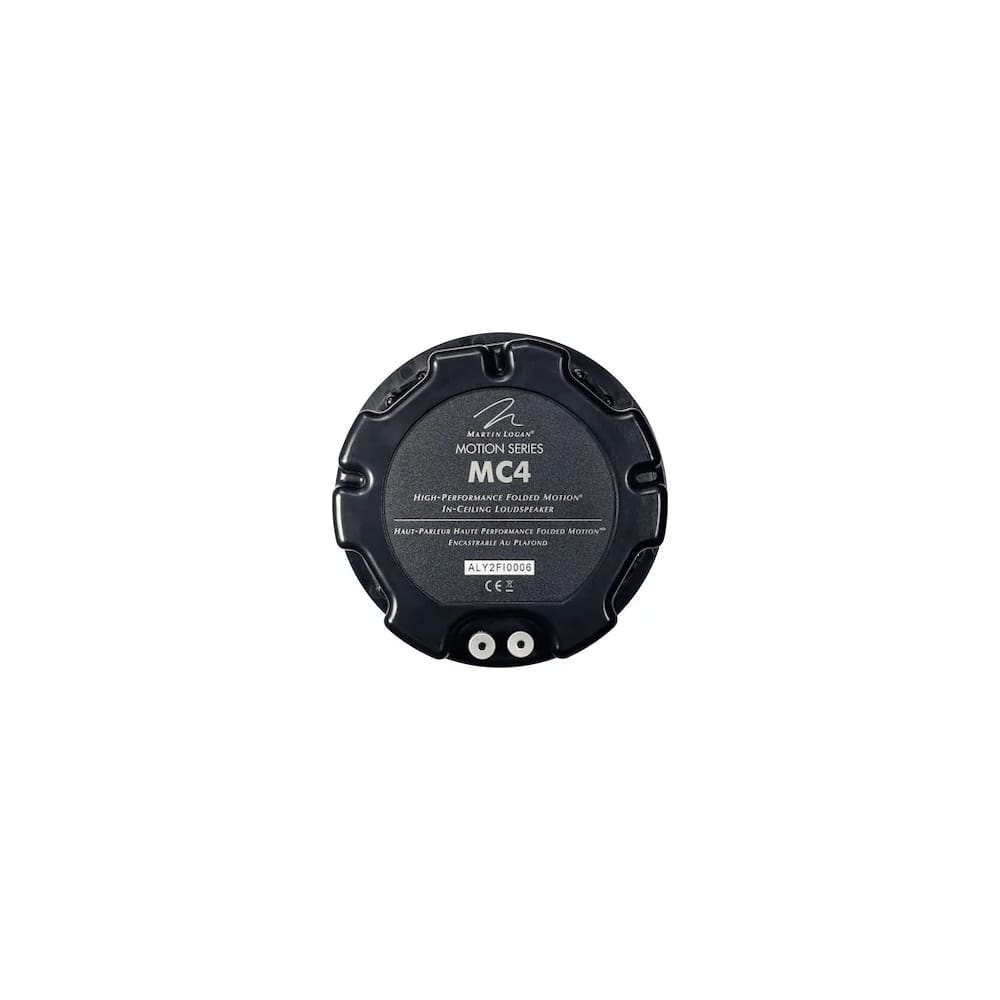

The MC4 is the most compact in-ceiling speaker in the MartinLogan Motion series and also one of the most versatile. The stunning clarity of its Folded Motion Tweeter paired with a lightweight woven fiberglass woofer all wrapped
up in a built-in enclosure means you get incredible, and predictable sound exactly where you want it.
NOTE: PRICE IS PER PAIR
Technical Specifications:
|
Frequency Response
|
90 - 25,000 Hz ±3dB
|
|
Aiming
|
N/A
|
|
Sensitivity
|
90dB @2.83V/ 1 meter
|
|
Impedance
|
Compatible with 8 ohms
|
|
High Frequency Driver
|
FMT Transducer 1” x 1.4” (2.6cm x 3.6cm) Opening 5.25” x 1.75” (13.3cm x 4.4cm) Diaphragm
|
|
Crossover Frequency
|
2,230 Hz
|
|
Low Frequency Driver
|
4” (10.16cm) black
fiberglass cone
|
|
Suitable Amplifier Range
|
50–120 Watts
|
|
Max Power Handling
|
60 Watts
|
|
Binding Post Inputs
|
Push style accommodates
wire up to 12AWG
|
|
Weight
|
2.02 lbs.
(0.9 kg) each
|
|
Dimensions (overall size)
|
5.63” x 5.65”
(14.3cm x 14.3cm)
|
|
Projection From Wall Surface
|
0.26” (0.65cm)
|
|
Required Wall Opening (includes tolerance)
|
4.89” (12.41cm)
diameter
|
|
Depth Behind Wall Surface
|
5.50” (13.9cm)
|
