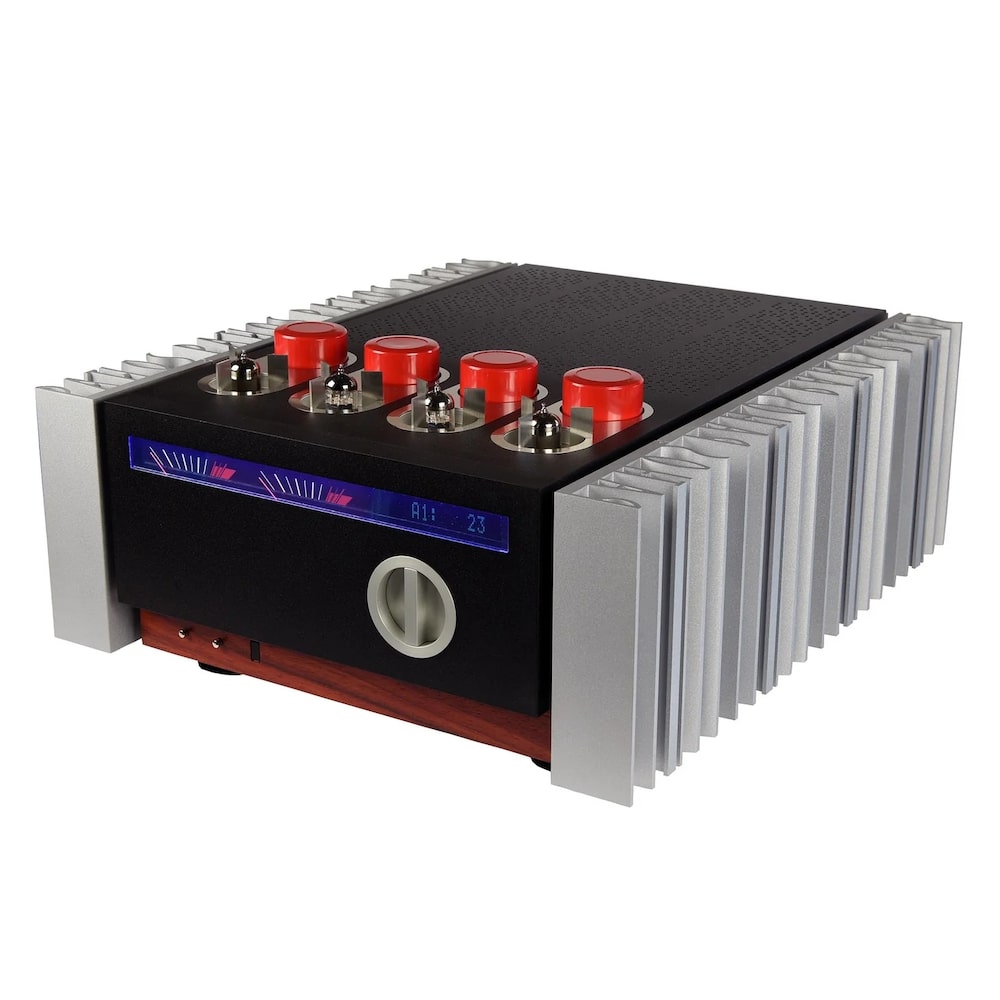

InPol which stands for Inseguitore Pompa Lineare – Linear Pump Follower, is a system patented by Pathos Acoustics which has enjoyed great success and won many awards. The Pathos InPol Heritage MkII Integrated Amplifier includes a doubled power supply section making this amplifier dual mono and added one heat sink to increase the radiating surface and allow for better placement of the MOSFETs. This allows for a better dynamic on low frequencies and for enhanced power depending on the impedance. However, the power and aesthetic design remains the same.
The Pathos InPol Heritage is a fully-balanced pure Class A integrated amplifier using the latest generation double-InPol circuitry. This unit is 14cm longer and is provided with new sealed VU meters and WBT speaker terminals. Its generous 80-watts of InPol power will drive any type of loudspeaker between 4 and 8 Ohms, and create an incredible and emotionally-moving sound-stage. Additionally, the optional HiDac Mk2 board, allows the InPoL Heritage to receive all your music from your PC by USB or from a digital source by S/PDIF.
Specifications:
Type: Pure class A, double INPOL technology, fully balanced digital bias/gain set technology
Tubes: 2 x ECC803S Tung-Sol
2 X 6H30 Sovtek
Output power: 2 x 80 W @ 8 ohm
Frequency response: 2 Hz – 200 kHz ± 0.5 db
Max input voltage: 10 VRMS
Input sensitivity: 780 mVRMS
Input impedance: 20,000 ohm
Volume regulator: Purely resistive relays
THD: 0.1% @ 80 W
S/N Ratio: > 100 dB
Gain: 33 db unbalanced, 39 db balanced

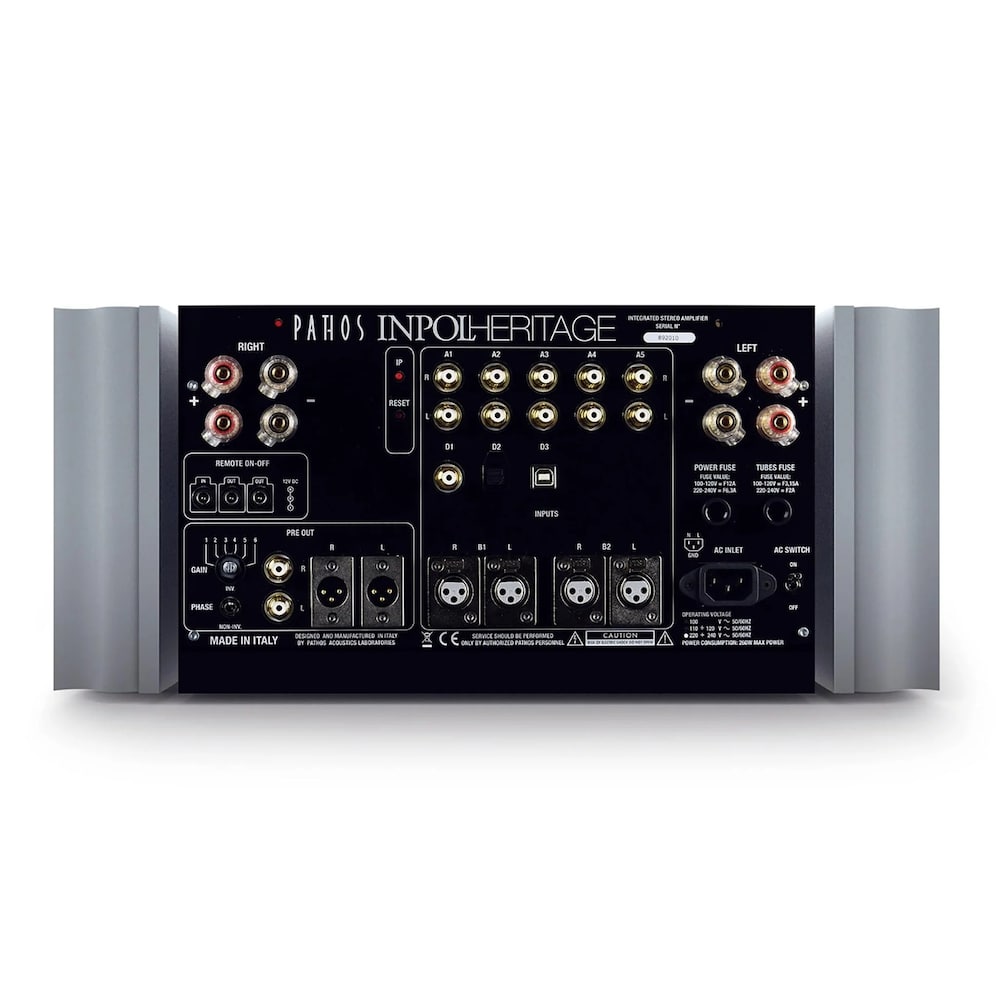

Analog inputs: 2 x XLR, 4 x RCA line inputs
Digital inputs (only with optional HiDac Mk2 board): 1 x USB B , 1 x S/PDIF coaxial, 1 x S/PDIF optical
Outputs: 1 x pre out RCA, 1 x pre out XLR. Four levels of output gain, phase selection
Dimensions (WDH): 17.7" x 21.8" X 9"
Net Weight: 127.8 lb (58 kg)
