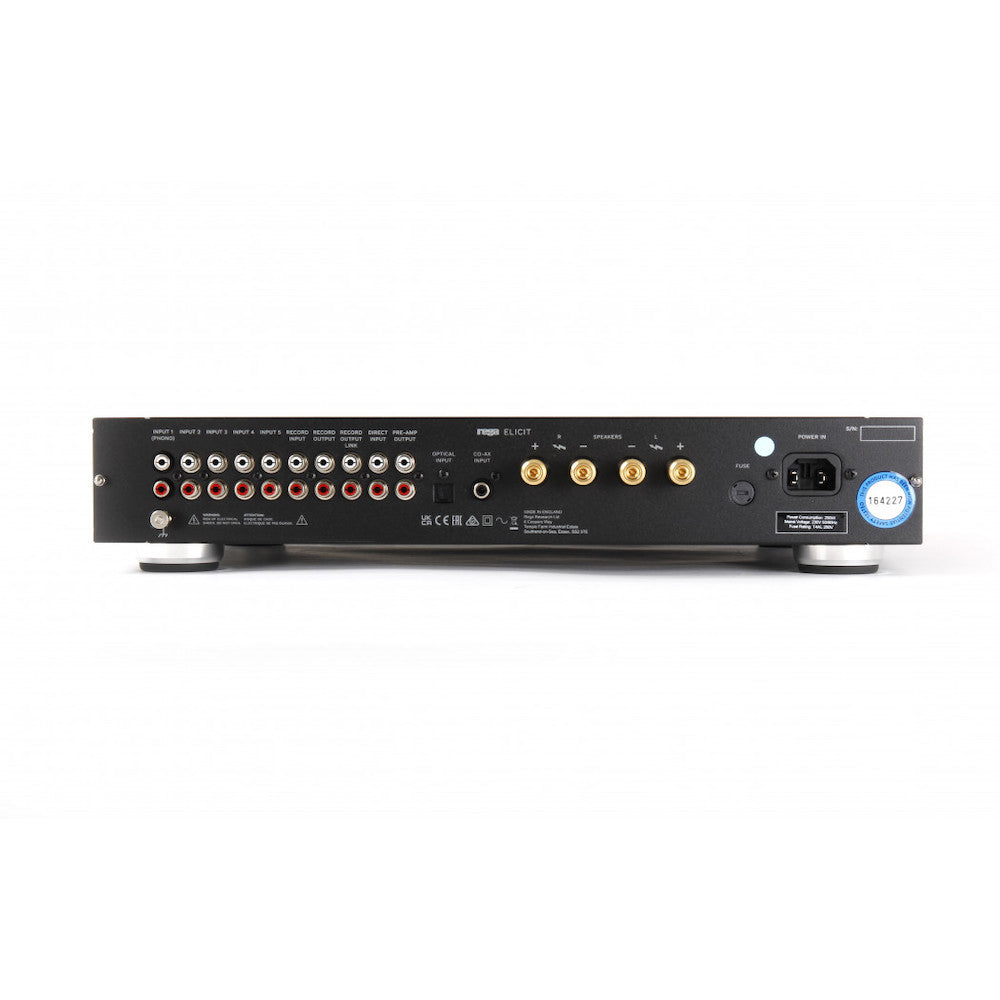

The Elicit-R includes a high quality, built in, moving magnet phono stage designed to maximise the potential of your vinyl system. A simple switch on the rear panel allows the same input to be switched to a secondary set at line level. This input is specially configured to offer further isolation and reduce noise. This makes it ideally suited for connection of more sensitive products such as an external MM or MC phono stage.
Specifications:
Power output
• 105 Watts per channel into 8Ω
• 127 Watts per channel into 6Ω
• 162 Watts per channel into 4Ω
Input sensitivity for 105 Watts into 8Ω
• Line inputs (input 1 switch set to line) 1-5 and record - 196mV load 10K
• Phono (input 1 switch set to phono) - 2mV Load 47K in parallel with 220pF
• Direct input - 760mV Load 50K
• Power amplifier gain - 31.6dB
• Record output - 196mV for rated inputs
• Pre-amplifier output - 760mV for rated inputs
• Dimensions: Width 432mm x Depth 325mm x Height 82mm
