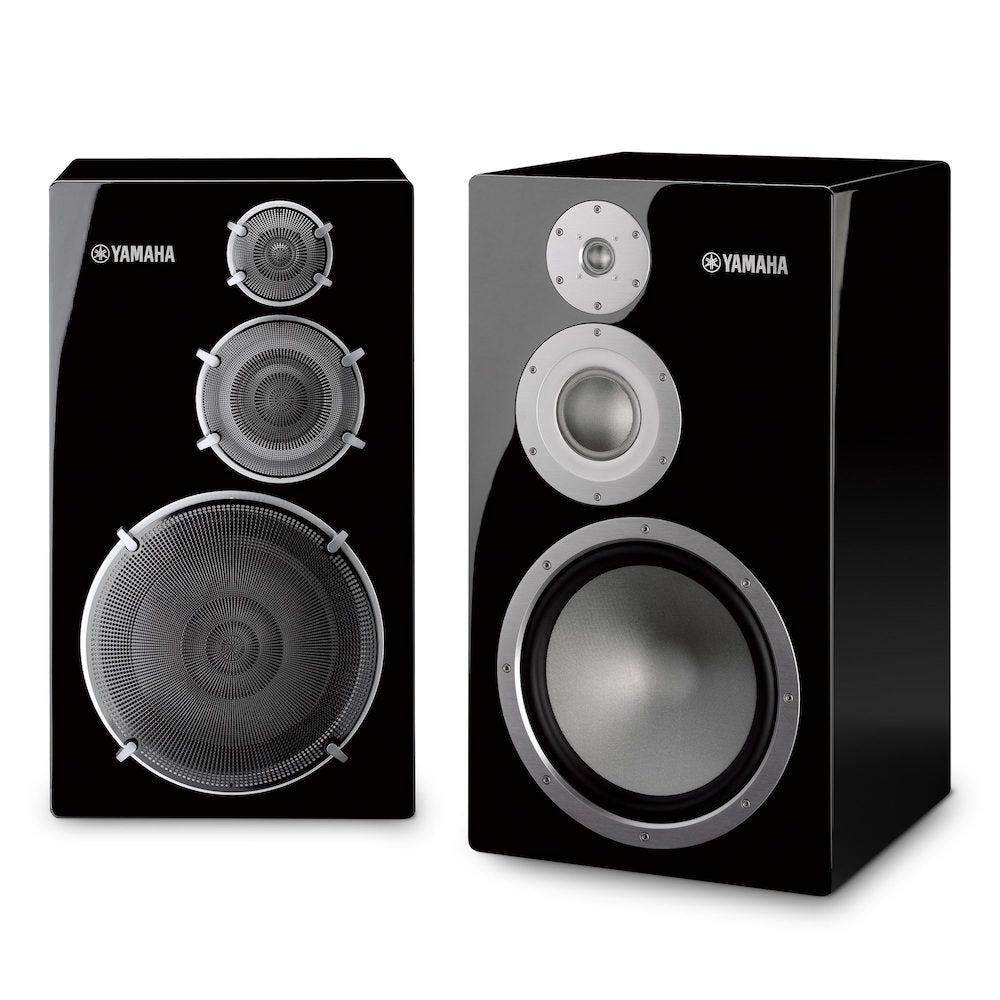

Yamaha NS-5000 Speaker

Name: Yamaha NS-5000 Speaker
Brand: Yamaha
SKU: 10673056350265
Price: 21,999.95 CAD
Availability: InStock

Yamaha

$21,999.95

Free Shipping In Canada

Color

Quantity

Typically ships within 1-2 days.

The new NS-5000's tweeter, midrange, and woofer all feature diaphragms made of 100% ZYLON^®. The soft-dome diaphragm suppresses peaks and dips in the frequency response caused by the inherent resonance of the diaphragm, while taking advantage of ZYLON^®'s high acoustic velocity comparable to that of beryllium, considered as the ideal diaphragm material for its hardness, lightweight (low density), and stiffness.

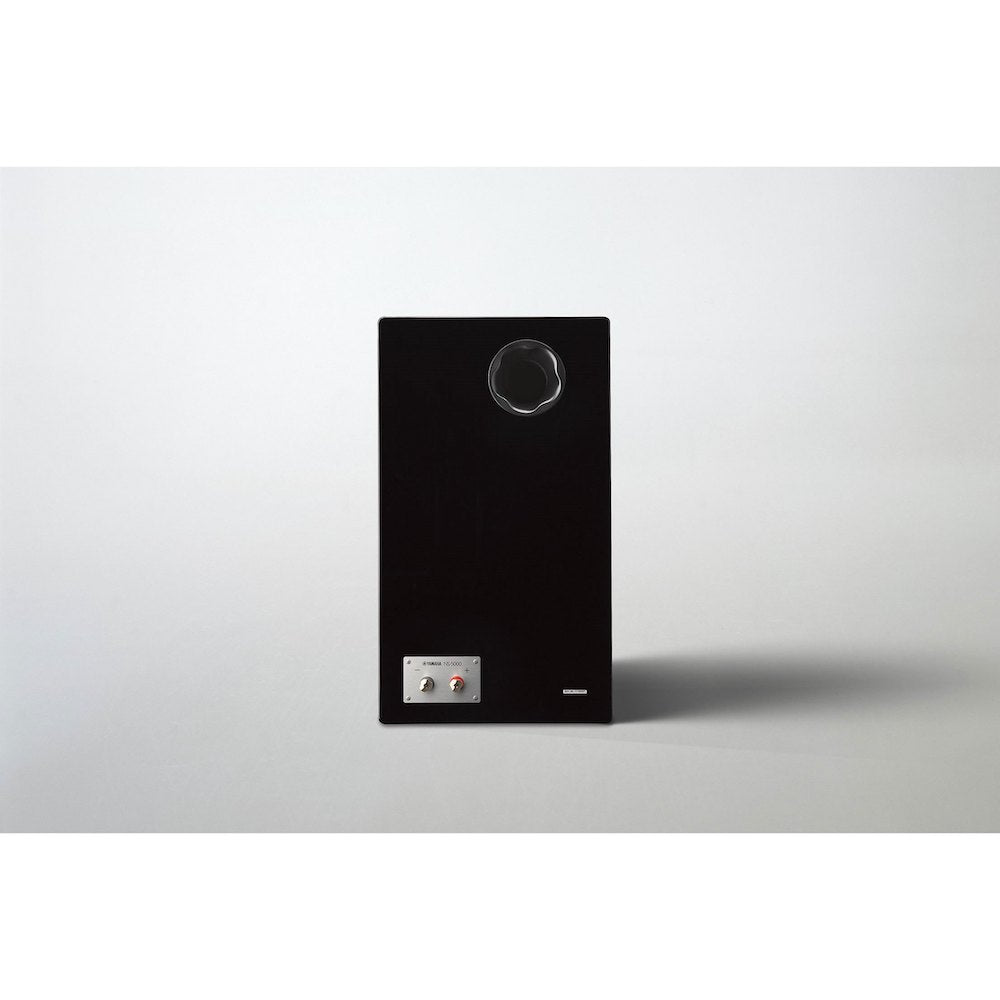

This bass-reflex enclosure with an internal volume of 65 liters — the smallest possible size for a 30 cm (12”) 3-way configuration — is solidly assembled with the 3-way mitered joint construction technique and other traditional crafting methods. Reinforcing crosspieces inside the enclosure, based on FEM analysis, suppress “box ringing” caused by delayed vibration from the six surfaces of the enclosure. In addition, a twisted flare port prevents port noise (wind noise produced at each end of a bass reflex port) inherent in the bass reflex design, and improves resolution in the low frequency range while also enhancing signal-to-noise performance.

Priced Per Pair.

Specifications:

NS-5000

Type	3-way bookshelf, bass-reflex system
Frequency response	26 Hz - 40 kHz (-10 dB), - 100 kHz (-30 dB)
Normal input power	200 W
Maximum input power	600 W
Sensitivity	88 dB / 2.83 V / 1 m
Nominal Impedance	6 Ω (minimum 3.5 Ω)
Crossover frequencies	750 Hz, 4.5 kHz
Diaphragm	ZYLON^®
Voice coil	Square copper wire
Tweeter	3 cm, ferrite, non-magnetically shielded
Midrange	8 cm, ferrite, non-magnetically shielded
Woofer	30 cm, ferrite, non-magnetically shielded
Filter characteristics	Tweeter: -18 dB / oct. Midrange: -12 dB / oct. (low), -6 dB / oct. (high) Woofer: -6 dB / oct.
Input	Single
Dimensions (W x H x D)	395 × 690 × 381 mm 395 × 690 × 422 mm (including speaker terminals) 15-1/2” x 27-1/8” x 15” 15-1/2” x 27-1/8” x 16-5/8” (including speaker terminals)
Weight	35 kg; 77.2 lbs.
Accessories	Separate protectors (for tweeter, midrange and woofer), port plug, owner’s manual * Speaker cables are not included.

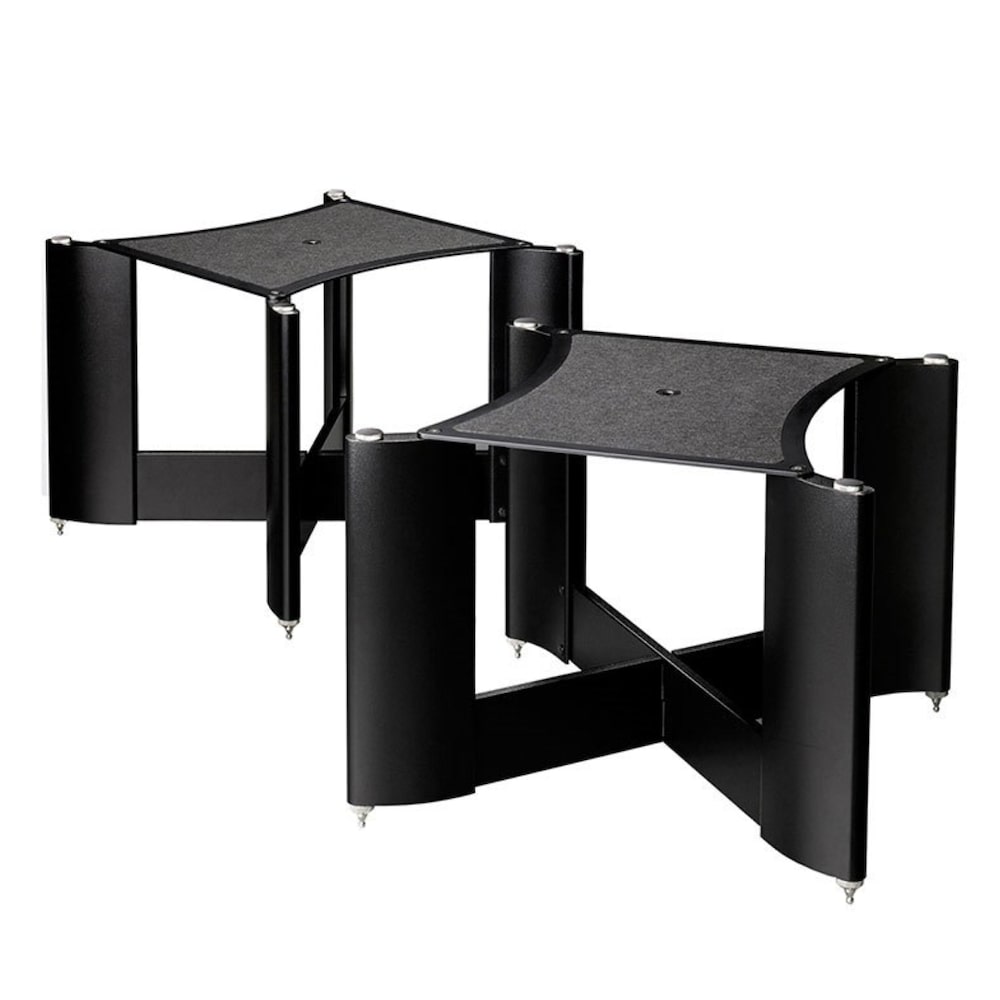

SPS-5000

Material	Aluminium (four legs are solid aluminium); Steel (top plate, spikes, spacers)
Dimensions (W x H x D)	393 × 304 × 376 mm; 15-1/2” x 12” x 14-3/4” (with spikes), 393 × 285 × 376 mm; 15-1/2” x 11-1/4” x 14-3/4” (without spikes)
Weight	8 kg; 17.6 lbs.
Accessories	Speaker fixing screws, owner’s manual
