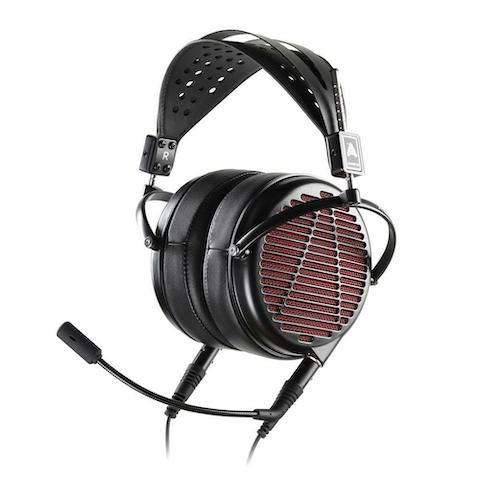

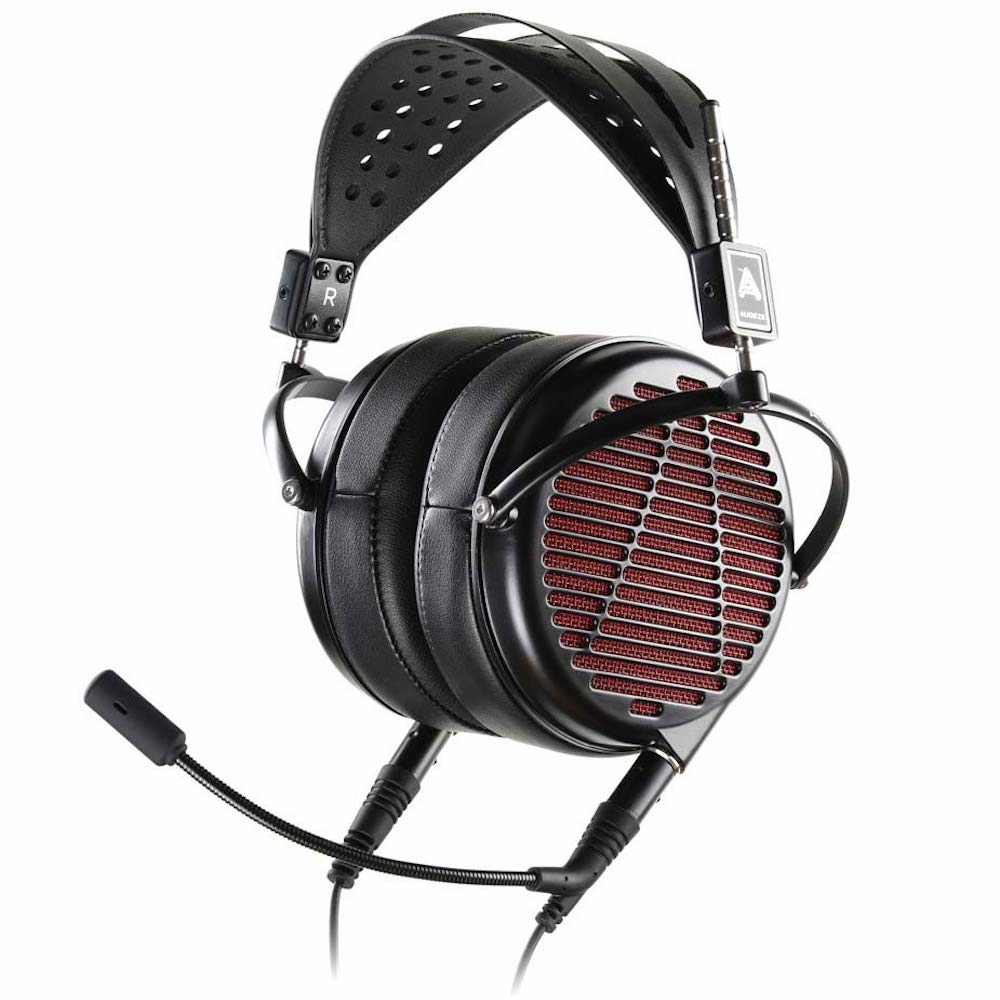

The LCD-GX includes a detachable cable with a built-in directional, noise-attenuating boom microphone. The thoughtfully designed microphone cable includes a mute button and flexible gooseneck arm, allowing customized positioning to ensure each individual can find the angle that works best for them.
The LCD-GX comes with 2 exchangeable cables – The boom mic cable, and a standard LCD series cable (for those who don’t always need the boom mic). The boom mic cable terminates with a 1/8” TRRS 4 conductor plug for use with virtually all PCs, Macs, cellphones, etc. We also include a dual 1/8” inch splitter for separate headphone and microphone inputs.
LCD-GX Includes:
- Audeze LCD-GX Headphone
- Professional Travel Case
- 8ft long cable with Microphone (1/8" TRRS connector)
- LCD series standard cable without Microphone (1/4” TRS connector)
- Audio adaptor - OMTP to CTIA (Reverses the mic and ground connection)
- Splitter (1/8" TRRS to dual 1/8” TRS connectors for audio and microphone)
- User guides, Warranty cards

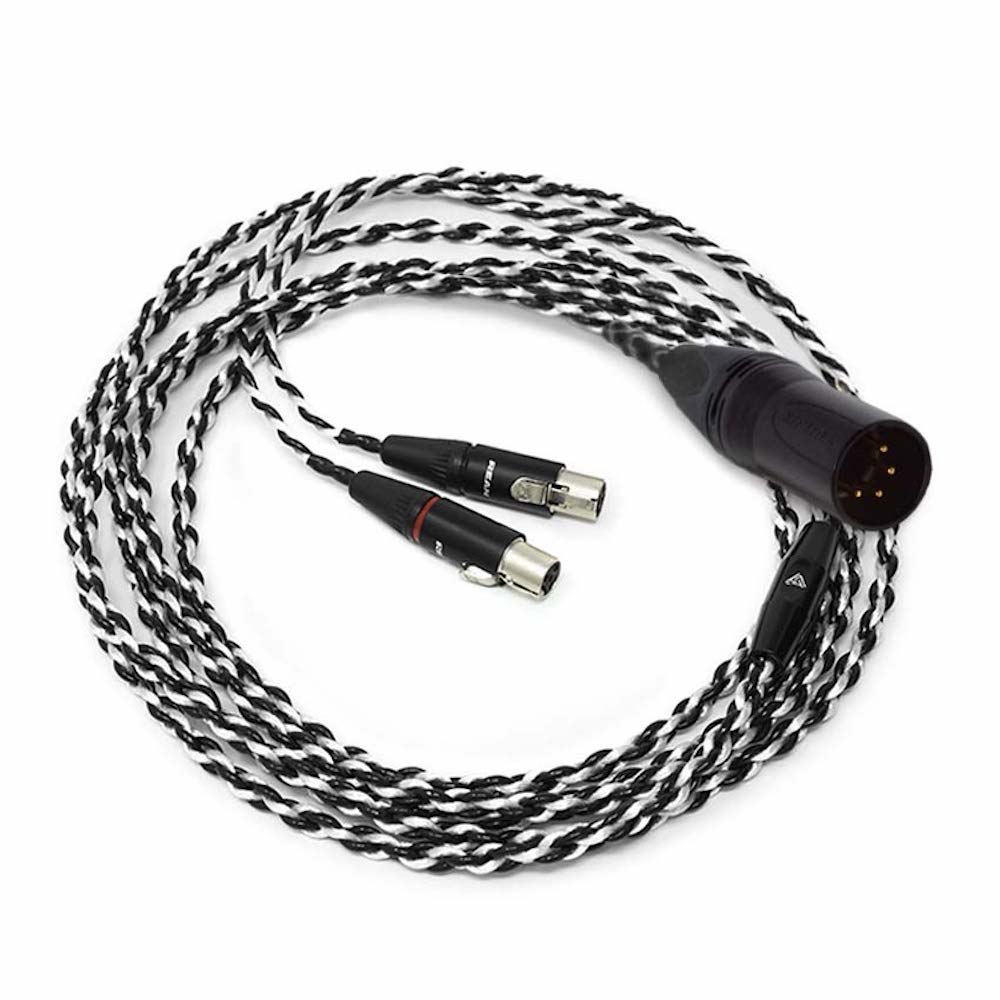

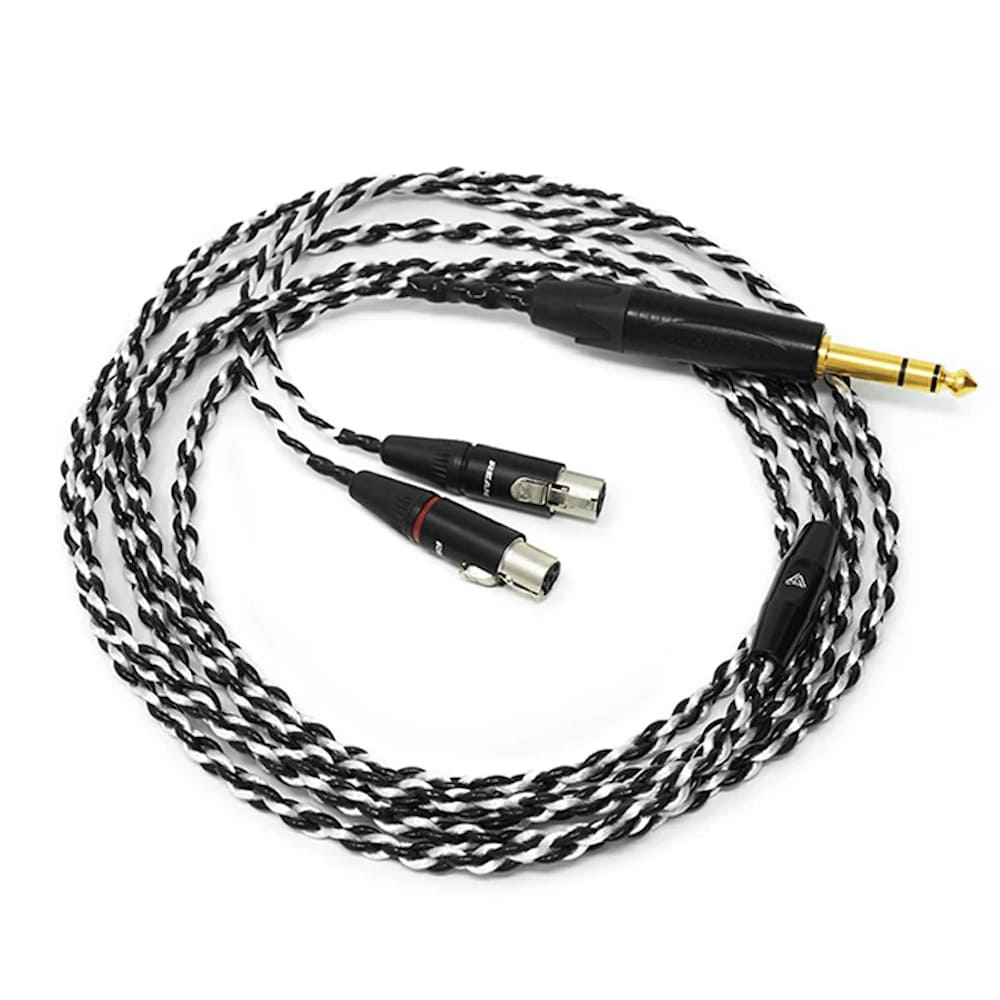

The Audeze LCD Series Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.
- Very flexible, tangle free
- Non-microphonic jacket
- Length: 2.5m; Weight: 110 g
Connectors:
- 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
- 2 x 4-pin mini XLR for headphone earcup connection
Electrical Specifications:
- Resistance: 12 milliohms per foot
- Capacitance: 10 picofarads per foot
- Inductance: 0.15 microhenrys per foot
- Dielectric strength: 1000V
PLEASE indicate choice of Balanced 4 pin XLR or 6.3mm Single Ended Connector in the check out notes. Thank you.
| LCD-GX Specifications: |
|
|
|
|
|
|
|
|
|
Single Fluxor™ magnet array
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100 dB/1mW (at Drum Reference Point)
|
Minimum power requirement
|
|
|
|
|
|
|
|
