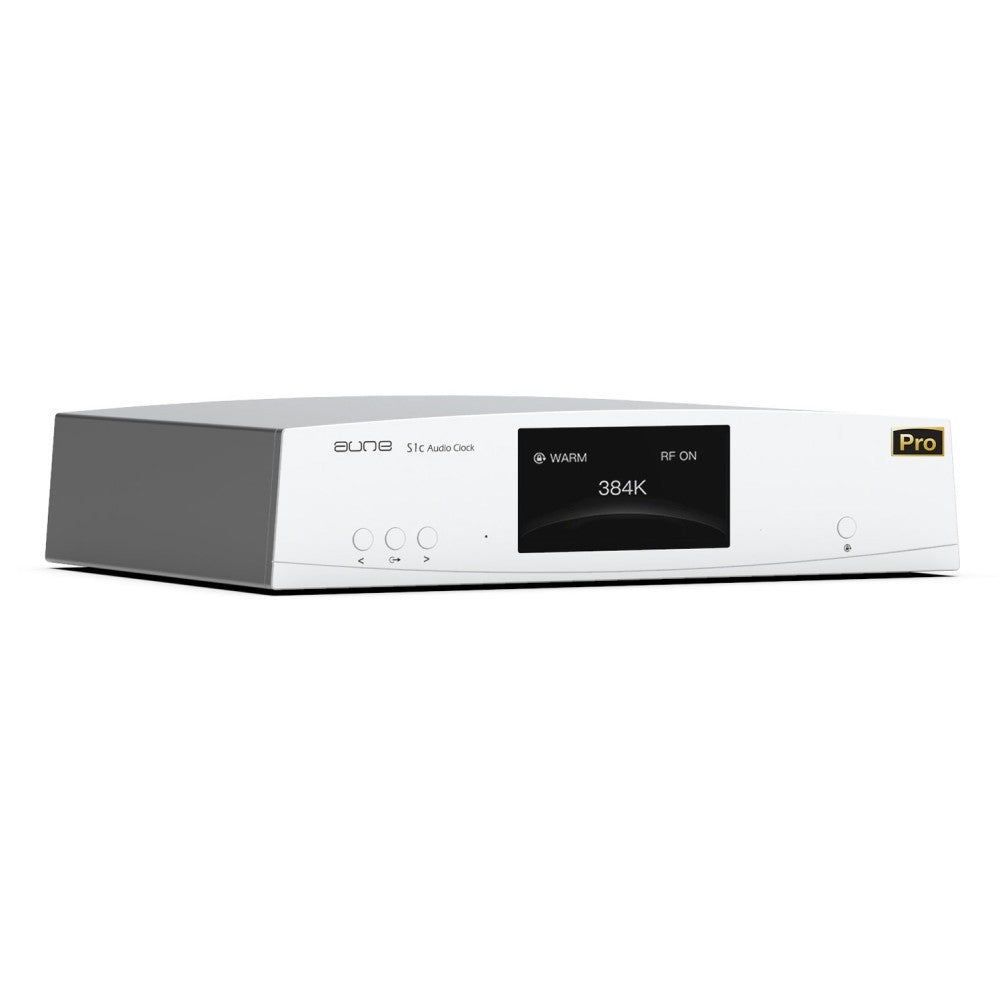

The Aune Audio S1c external clock is high-performance with an optimized audio architecture. This product includes an OCXO oscillator and an FS-1 frequency synthesizer designed by Titans Audio Lab, with efficient power supply and signal isolation.
Specifications:
| Product type |
Clock |

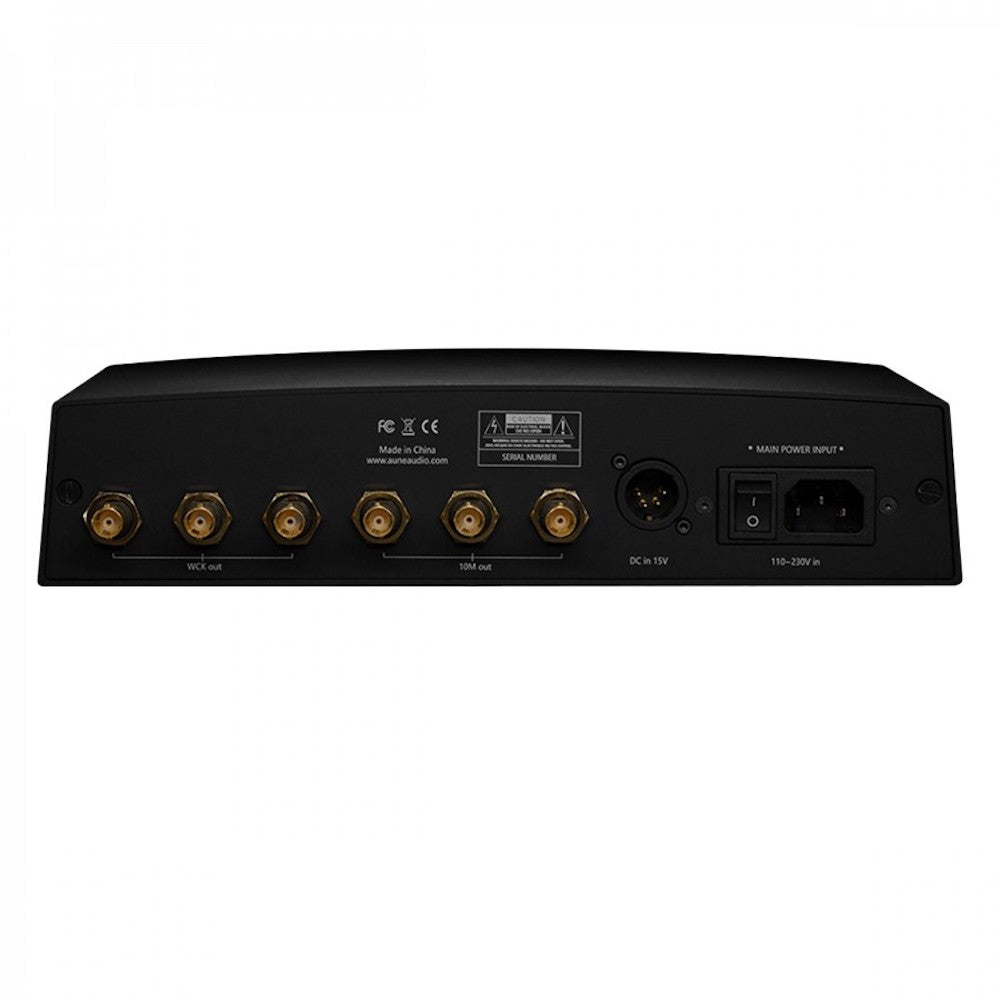

| Outputs |
3* WCK outputs (1-8Fs) on BNC connectors
3* 10MHz outputs on BNC connectors |
| Output power |
10MHz: > 7dBm (50Ω)
WCK: > 7dBm (75Ω) |
| Output waveform |
Square wave |
| Rise time |
< 2ns |
| Audio stability |
< 5ppt |
| Phase noise (10MHz) |
< -100dBc @ Offset 1Hz
< -130dBc @ Offset 10Hz
< -140dBc @ Offset 100Hz
< -150dBc @ Offset 1kHz
< -158dBc @ Offset > 10kHz |
| Phase jitter |
< ±0.02ppm |
| Warm-up time |
Basic warm-up: 5min
Full warm-up: 60min |
| GENERAL |
| Supply voltage |
100-240VAC
15VDC 2A |
| Operating temeprature |
Normal operation : 0°C-50°C
Optimal operation : 15°C-35°C |
| Dimensions |
288*211*63mm |
|
|
| Package |
1* Aune S1c Black
1* Power cable |
