| MODE: |

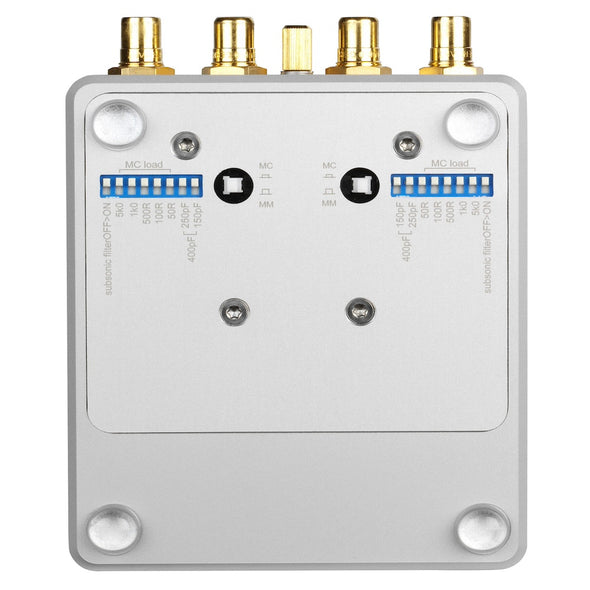

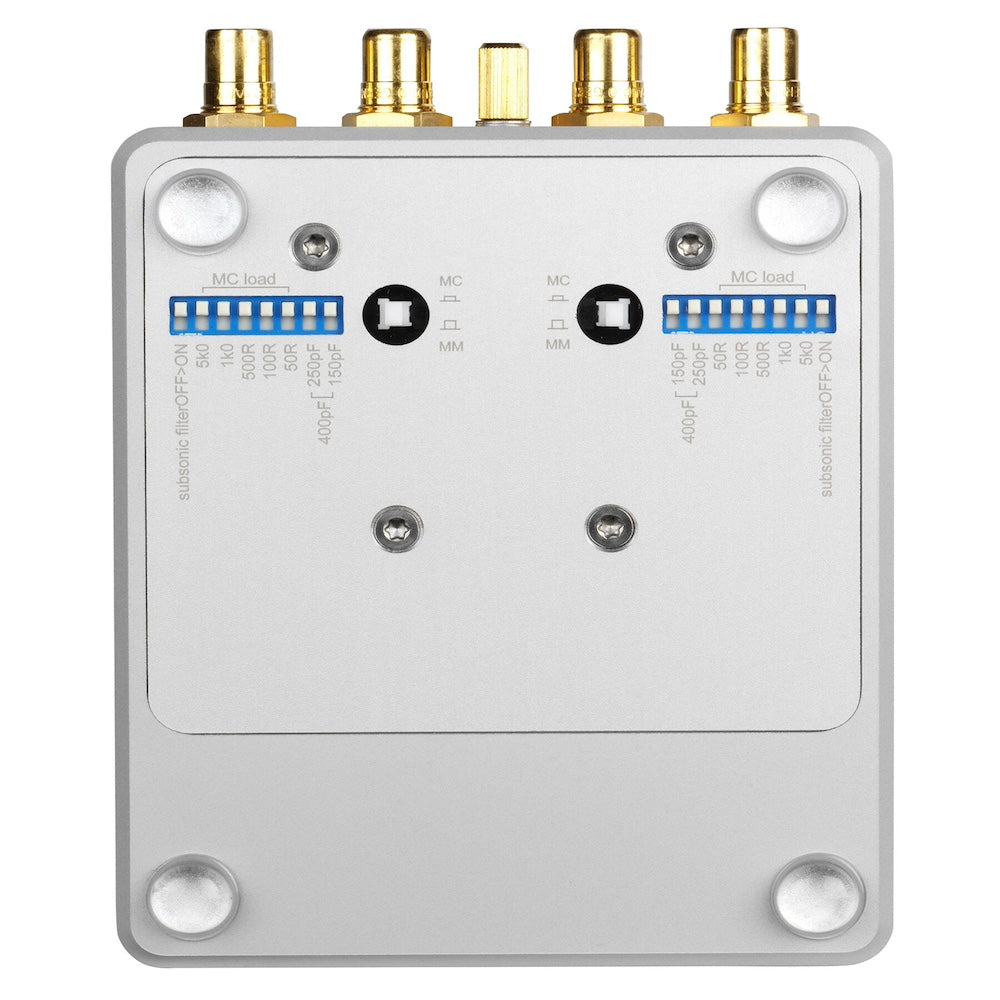

MM / MC switchable by jumpers (at bottom)
Subsonic filter switchable by jumpers (at bottom) |
| AMPLIFICATION: |
34dB (MM mode)
54dB (MC mode) |
| INPUT LOAD: |
50 Ω, 100 Ω, 500 Ω, 1 kΩ,
5 kΩ / 150 pF, 250 pF, 400 pF (MC mode)
47 kΩ / 150 pF, 250 pF, 400 pF (MM mode) |
| RIAA ACCURACY: |
± 0.3dB @ 10Hz - 100kHz |
| THD: |
< 0.004% MC ("A" @ 1kHz / -1dB @ MAX) |
| SIGNAL TO NOISE RATIO: |
85dB (A) (MM mode)
72dB (A) (MC mode) |
| HEADROOM: |
18dB / MC (Gain Control on MAX) |
| MAX. OUTPUT VOLTAGE: |
10V eff. (1kHz) |
| RIAA: |
delay time: 75μs / 318μs / 3180μs |
| CHANNEL SEPERATION: |
> 90dB @ 1kHz |
| OUTPUT IMPEDANCE: |
75Ω |

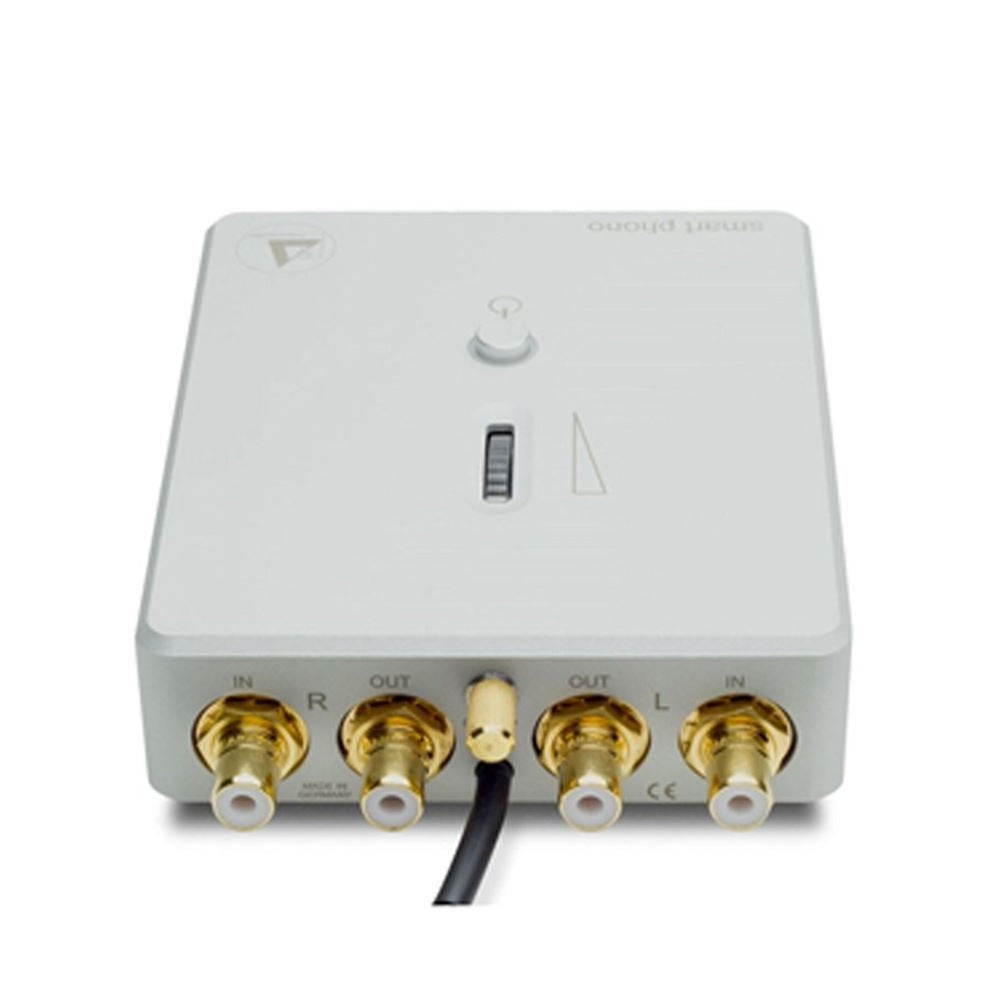

| INPUTS: |
unbalanced (RCA) |
| OUTPUTS: |
unbalanced (RCA)
optional headphone output (Jack: 3.5mm) |
| POWER CONSUMPTION: |
Max. consumption: 2.7 watts
Consumption in operation: 2.7 watts
Off mode: 0.0 watts |
| POWER SUPPLY: |
± 18V DC / 300mA (external power supply) |
| TOTAL WEIGHT: |
Approx. 620g (Preamp and power supply) |
| DIMENSIONS (W/D/H): |
Approx. 3.74 × 4.92 × 1.34 inches |
| DIMENSIONS (W/D/H): |
Approx. 95 × 125 × 34mm |
| MANUFACTURER'S WARRANTY: |
3 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
|
