Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

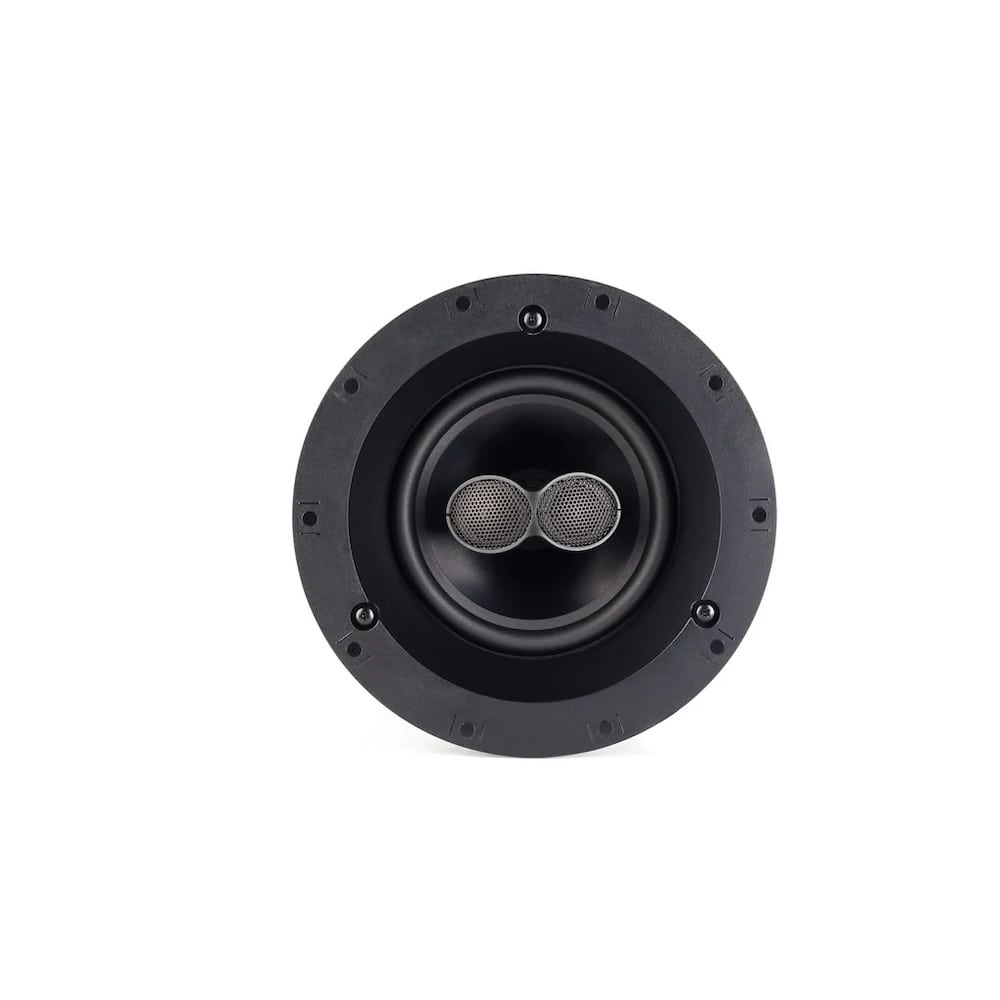

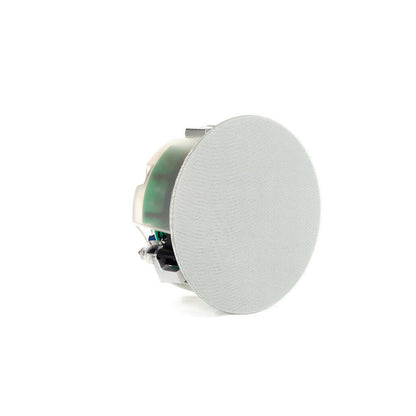

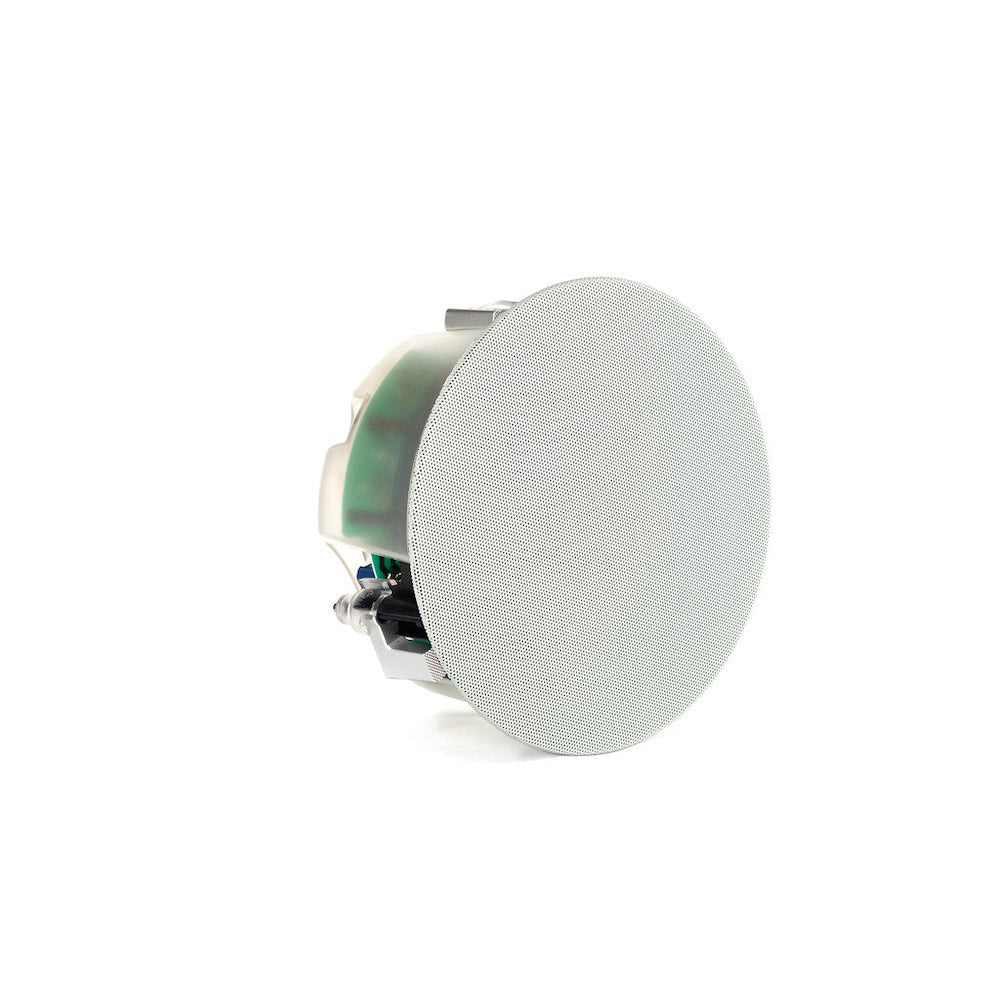

The Martin Logan Helos 22 is a high-resolution stereo in-ceiling loudspeaker. It features dual 0.75-inch neodymium soft dome tweeters, an aluminum cone woofer, and proprietary Vojtko crossover topology.
NOTE: PRICE IS PER PAIR
Technical Specifications:
|
Frequency Response
|
47–20,000 Hz ±3dB
|
|
Aiming
|
Pivoting Tweeter Stem
|
|
Recommended Amplifier Power
|
20—200 watts per channel
|
|
Recommended Amplifier Power (Stereo)
|
20 watts × 20 watts ‒ 100 watts × 100 watts
|
|
Sensitivity
|
89 dB/2.83 volts/meter
|
|
Impedance
|
Mono: 4 Ohms. Stereo: 8 Ohms × 8 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
2600 Hz
|
|
High Frequency Transducer
|
Two 0.75" (1.9 cm) neodymium soft-dome tweeters
|
|
Low Frequency Transducer
|
6.5" (16.5 cm) cast basket, high rigidity aluminum cones with extended throw drive assembly, thermal protection
|
|
Components
|
Air core coils, polyester capacitors
|
|
Inputs
|
Stereo binding posts (bridge for mono)
|
|
Weight
|
4.5 lbs. (2 kg)
|
|
Cut-Out Dimensions
|
8.35" dia.
(21.2 cm dia.)
|
|
Projection From Wall Surface
|
.2" (.45cm)
|
|
Depth Behind Wall Surface
|
4.9" (12.3 cm)
|
