Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

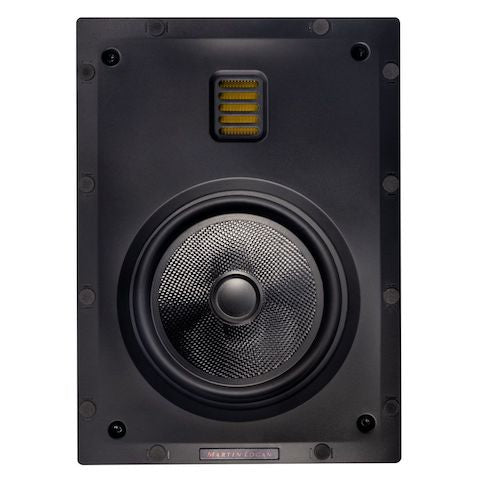

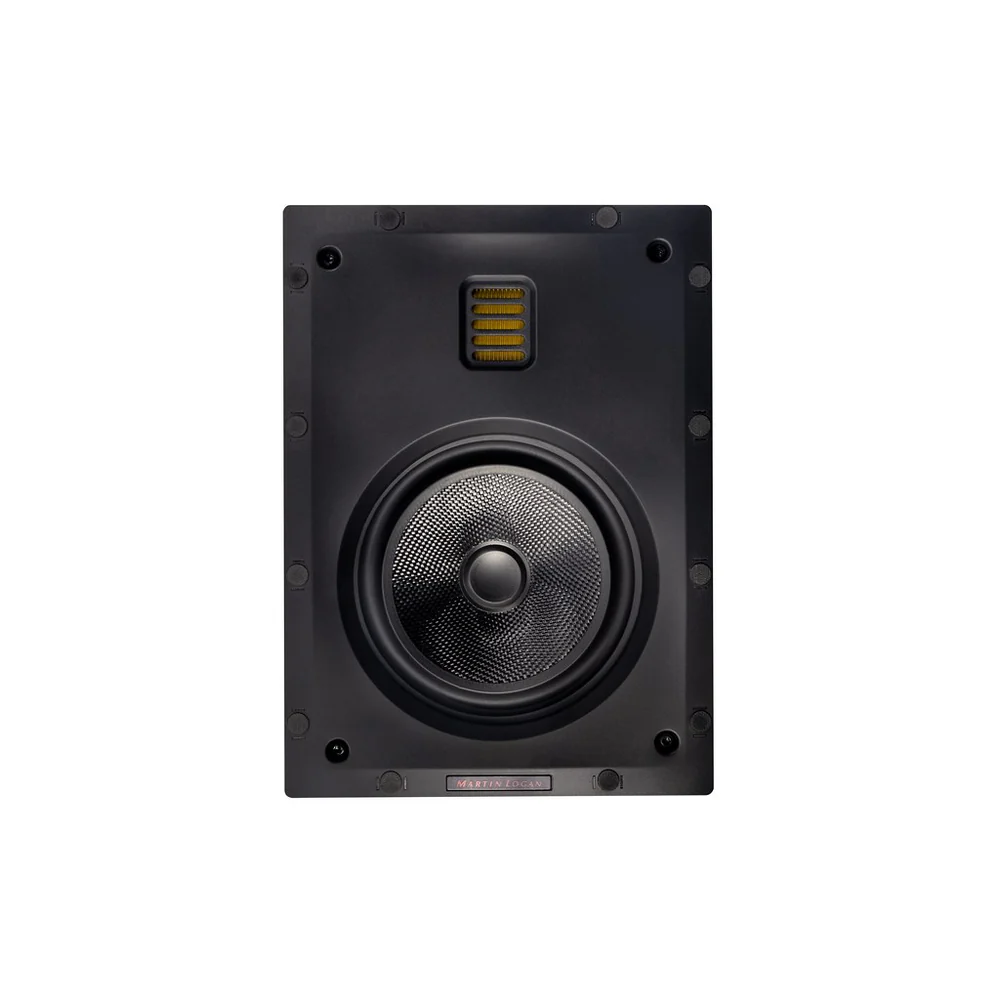

The Martin Logan Motion MW6 is one of the most popular sizes of in-wall speakers, featuring a 6.5” woofer. As with all Motion CI speakers, you will find the incredible Folded Motion Tweeter and woven fiberglass woofers that provide an incredible listening experience that won’t break the bank.
NOTE: PRICE IS PER PAIR
Technical Specifications:
|
Frequency Response
|
62 - 25,000 Hz ±3dB
|
|
Aiming
|
N/A
|
|
Sensitivity
|
90dB @2.83V/ 1 meter
|
|
Impedance
|
Compatible with 8 ohms
|
|
High Frequency Driver
|
FMT Transducer
1” x 1.4”
(2.6cm x 3.6cm)
Opening
5.25” x 1.75”
(13.3cm x 4.4cm)
Diaphragm
|
|
Crossover Frequency
|
2,920 Hz
|
|
Low Frequency Driver
|
6.5” (16.51cm) black
fiberglass cone
|
|
Suitable Amplifier Range
|
50–120 Watts
|
|
Max Power Handling
|
60 Watts
|
|
Binding Post Inputs
|
Push style accommodates
wire up to 12AWG
|
|
Weight
|
6 lbs. each
(2.72 kg)
|
|
Dimensions (overall size)
|
8.04” x 11.07” x 4.16”
(20.43 x 28.13 x 10.55cm)
|
|
Projection From Wall Surface
|
0.31” (0.79cm)
|
|
Required Wall Opening (includes tolerance)
|
6.97” x 11.07”
(17.70cm x 28.13cm)
|
|
Depth Behind Wall Surface
|
4.04” (10.25cm)
|
|
