Fyne Audio's F500 SP Series use the company's flagship BassTrax Tractrix bass porting system from the F700 and flagship F1 models. This series has many crossover components and circuit architecture from the F700 loudspeakers. The F500 SP models are built in the UK and use low-loss laminated core inductors, high-grade polypropylene capacitors, and Van Den Hul Matched Crystal silver-plated OFC wiring enhanced by Fyne's Cryo-Lite process. The F500 SP Series also integrate Fyne’s high-quality bi-wire terminal panel with a fifth loudspeaker terminal for driver chassis grounding. The most notable upgrade for the F500 SP Series are the SP Isoflare drivers which borrow much of the technology developed for F700 models, including the F700’s 25 mm magnesium diaphragm compression tweeter and multi-fiber cone with FyneFlute roll surround.

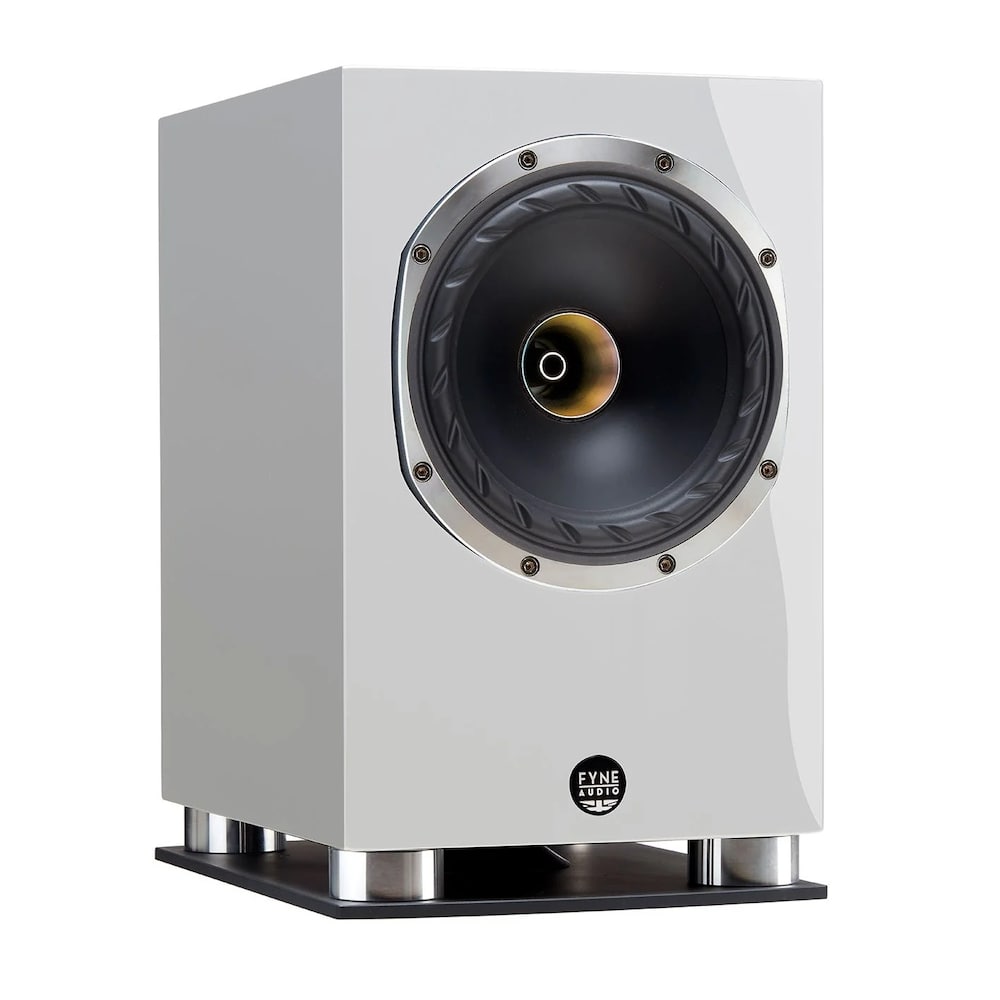

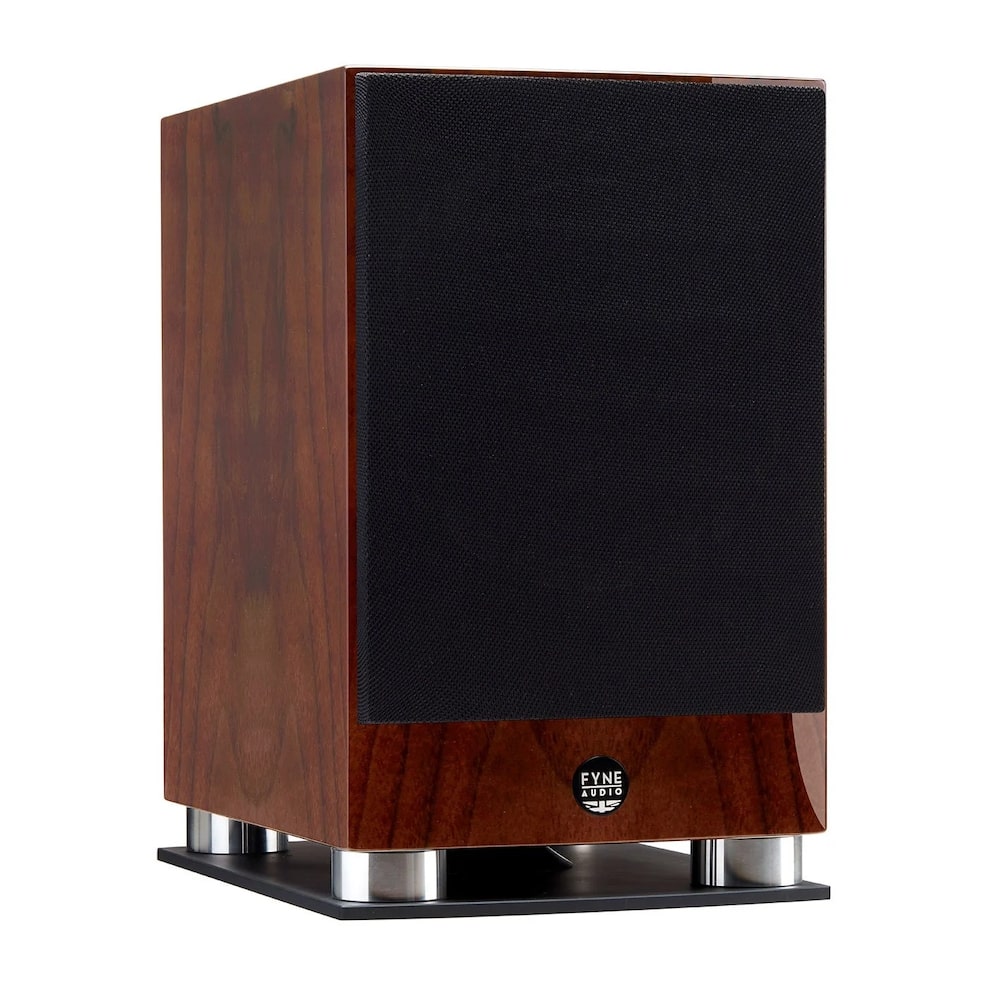

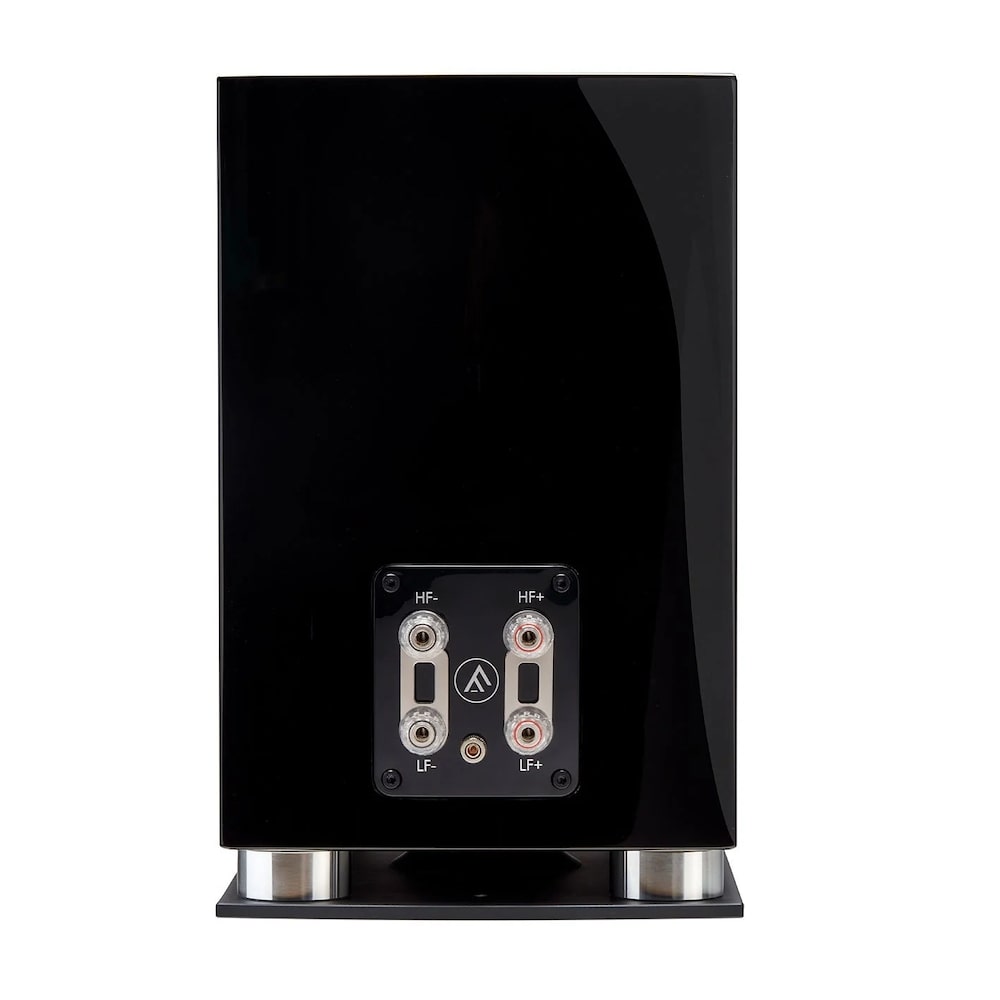

The F500 SP is the smallest loudspeaker in the F500 SP (Special Production) series. Featuring a 150mm (6") SP IsoFlare driver, tuned crossover, premium BassTrax port system, 25 mm magnesium dome tweeter, and 90 dB sensitivity. The standmount's SP IsoFlare driver delivers full-range, point source reproduction across the entire audio spectrum for outstanding detail and class-leading imaging. The multi-fibre cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and FyneFlute roll surround that reduces cone resonances at the driver termination. The LF output is channeled through a downfiring port onto Fyne’s premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The bi-wire connection panel features a fifth terminal to ground the driver chassis and eliminate amp or cable born RF interference. With enhanced details including anodised aluminium plinth, diamond-cut aluminium driver trim and a deep gloss walnut veneer finish option, the F500SP is Fyne Audio’s most affordable premium UK-made loudspeaker.
F500SP Specifications:
| System Type |
2 way, downwards firing port, with BassTraxTM Tractrix diffuser* |
| Recommended amplifier power (Watt RMS) |
30 - 120 |
| Continuous power handling (Watt RMS) |
60 |
| Sensitivity (2.83 Volt @ 1m) |
90dB |
| Nominal impedance |
8 Ohm |
| Frequency response (-6dB typical in room) |
42Hz - 34kHz |
| Drive unit complement |
1 x 150mm IsoFlare™ point source driver Multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system |
| Crossover frequency |
1.7kHz |
| Crossover type |
Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. |
| Dimensions - HxWxD |
323 x 200 x 320mm (12.7 x 7.9 x 12.6”) |
| Net Weight - Each |
8.1kg (17.6lbs) |
| Finishes |
Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |

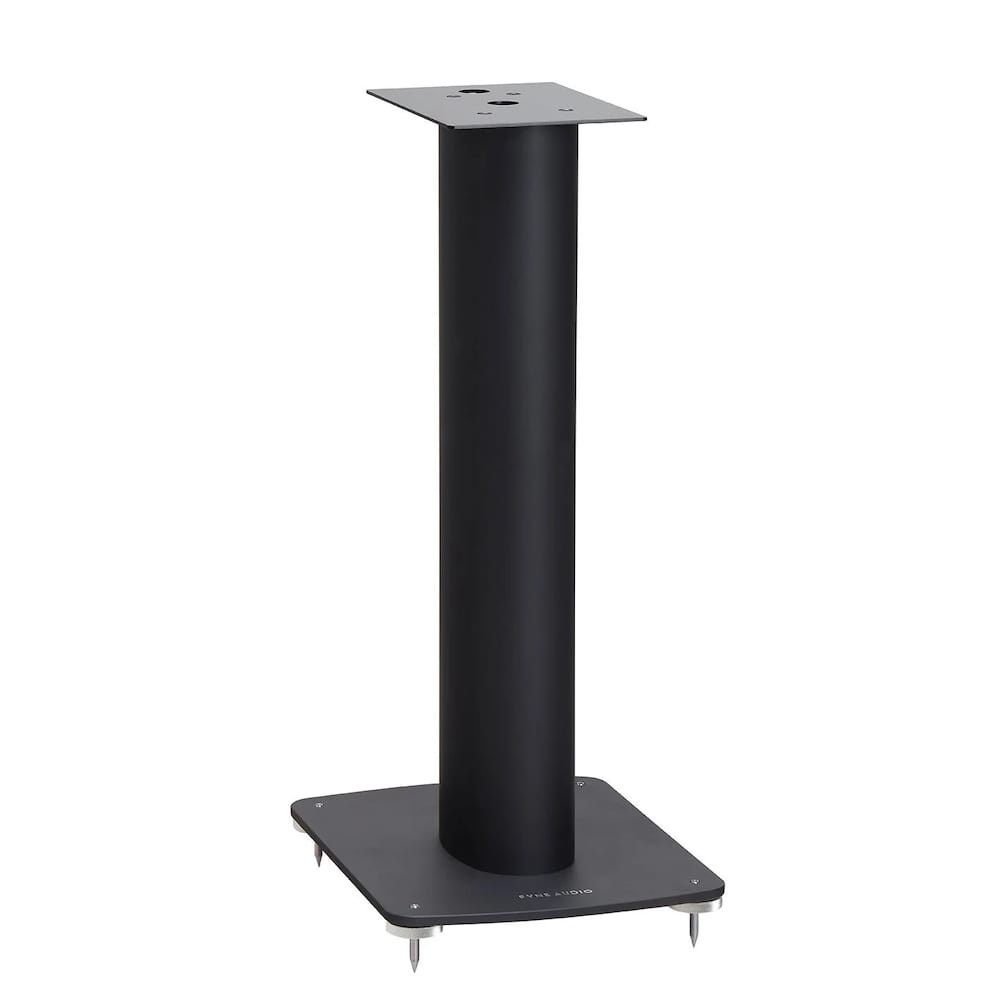

FS6 Specifications:
| Stand Height - excluding spikes |
611mm (24.1") |
| Stand Top Plate Dimensions |
160mm x 230mm (6.3 x 9.1") |
| Base Plate Dimensions - WxD |
277mm x 350mm (10.9 x 13.8") |
| Net Weight - Each |
6.5kg (14.3lbs) |
|
