Fyne Audio's F500 SP Series use the company's flagship BassTrax Tractrix bass porting system from the F700 and flagship F1 models. This series has many crossover components and circuit architecture from the F700 loudspeakers. The F500 SP models are built in the UK and use low-loss laminated core inductors, high-grade polypropylene capacitors, and Van Den Hul Matched Crystal silver-plated OFC wiring enhanced by Fyne's Cryo-Lite process. The F500 SP Series also integrate Fyne’s high-quality bi-wire terminal panel with a fifth loudspeaker terminal for driver chassis grounding. The most notable upgrade for the F500 SP Series are the SP Isoflare drivers which borrow much of the technology developed for F700 models, including the F700’s 25 mm magnesium diaphragm compression tweeter and multi-fiber cone with FyneFlute roll surround. The Floorstanding SP models use Fyne’s striking twin-layer metal plinth which is machined from thick aluminum plates. The integrated floor spikes are adjusted from the top of the plinth to make leveling easy, while knurled lock nuts clamp the spikes firmly in position. Machined aluminum cups are provided to protect wooden floors.

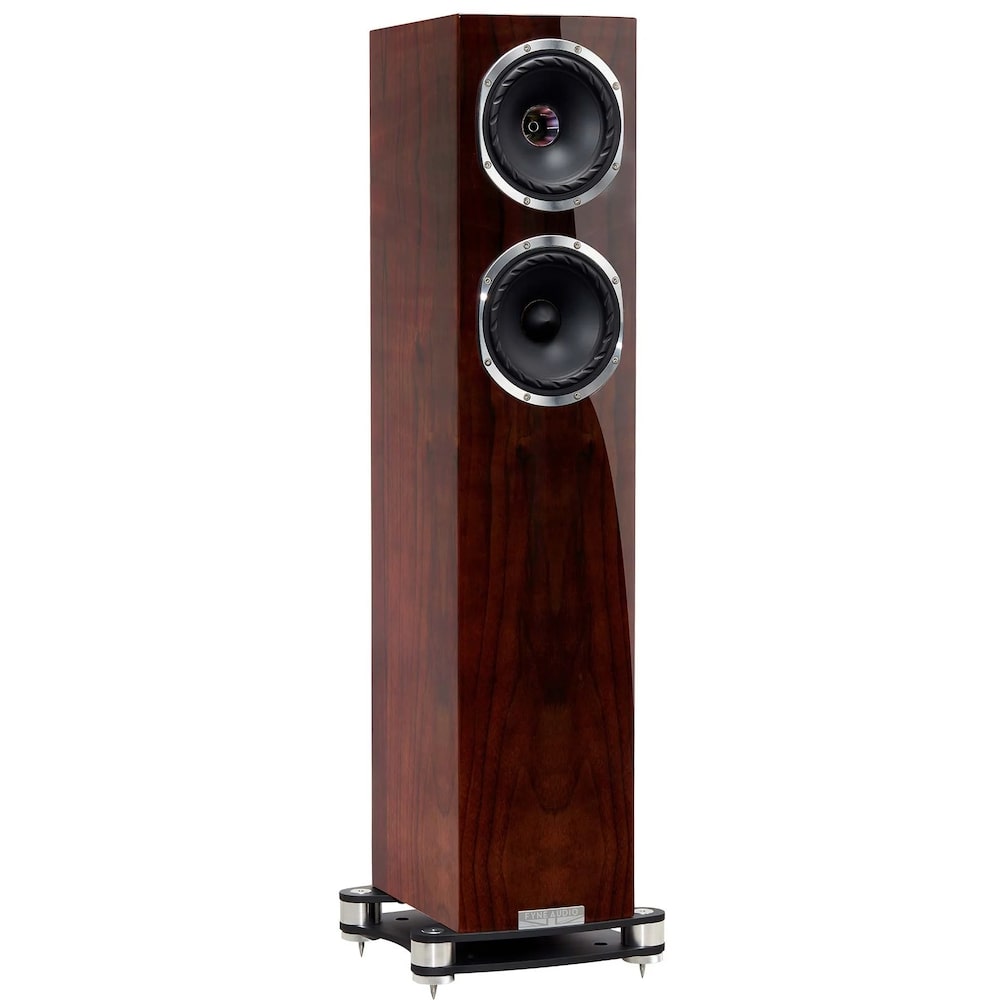

The F501 SP builds on the F501 loudspeaker both in its aesthetics and outstanding performance. Featuring a 150mm (6") SP IsoFlare driver, tuned crossover, premium BassTrax port system, 25 mm magnesium dome compression tweeter, and 91 dB sensitivity. The multi-fibre cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and FyneFlute roll surround that reduces cone resonances at the driver termination. The LF output is channeled through a downfiring port onto Fyne’s premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The speaker has an upgraded crossover which seamlessly integrates the drivers with the F501 cabinet, the SP also has Fyne’s signature aluminium sandwich plinth to enhance stability and further refine the BassTrax downward firing porting system. Another upgrade is seen in the connection panel featuring a fifth terminal to ground the driver chassis and reduce the influence of RF interference in the circuit. The F501SP benefits from diamond machine cut detailing on the aluminium driver chassis, an anodised machined aluminium plinth and the option of a Piano Gloss Walnut real wood veneer finish.
Specifications:
| System Type |
2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system |
| Recommended amplifier power (Watt RMS) |
30 – 180 |
| Continuous power handling (Watt RMS) |
80 |
| Sensitivity (2.83 Volt @ 1m) |
91dB |
| Nominal impedance |
8 Ohm |
| Frequency response (-6dB typical in room) |
36Hz – 34kHz |
| Drive unit complement |
1 x 150mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 150mm multi-fibre bass cone, FyneFlute surround. |
| Crossover frequency |
250Hz & 1.7kHz |
| Crossover type |
Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. |
| Dimensions - HxWxD |
984 x 288 x 320mm (38.7 x 11.3 x 12.7”) |
| Net Weight - Each |
21.0kg (46.3lb) |
| Finishes |
Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
