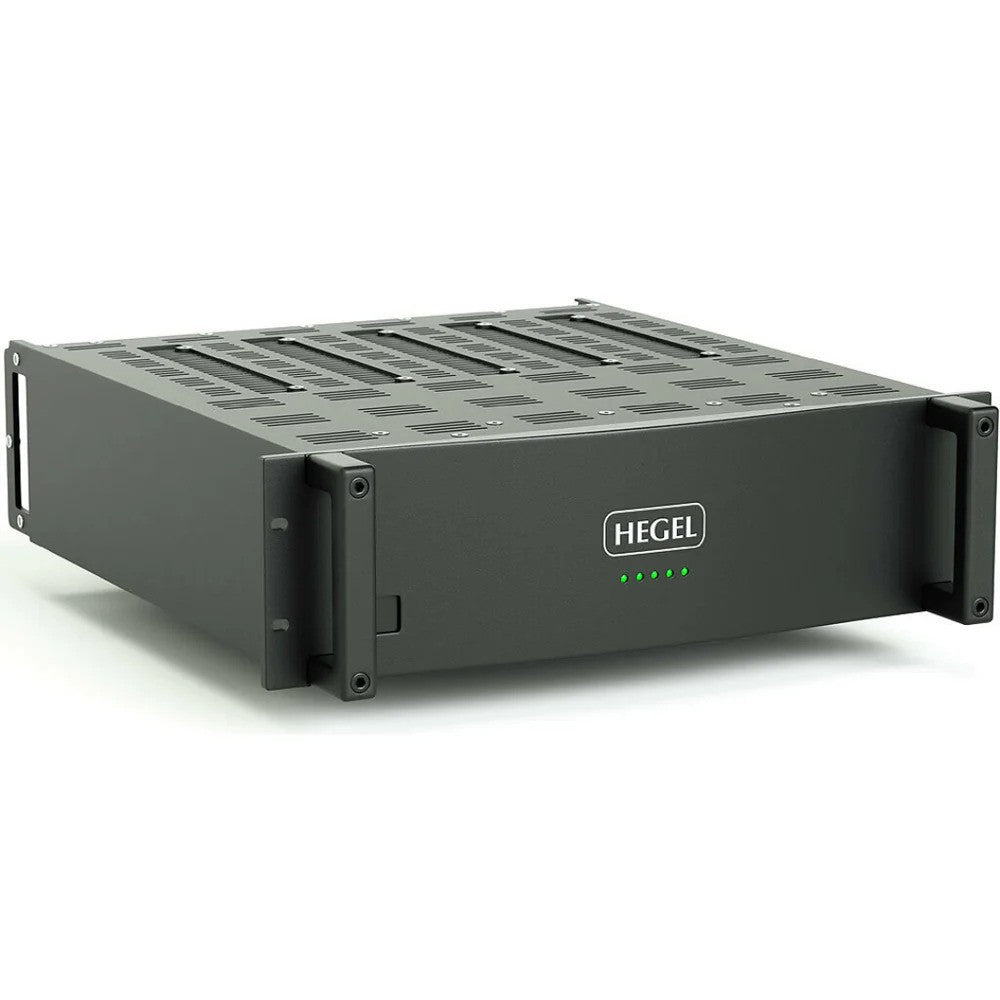

The new Hegel C5 Series Multi Channel Amplifier is designed for state of the art sound performance, but not priced like diamonds. With 3, 4 or 5 channels that can be tailored to your needs. Sound too good to be true? Well, it used to be, but not any longer. The Hegel C5 series: 3, 4 or 5 channel power amplifiers are rack-mountable, configurable, specified to your needs and will - most importantly - blow you away with their sound performance. Up to 5 channels of 150w/pc analog amplifier power, with enough Ooompf to boogie with almost any loudspeaker on the market. Meet the Hegel C5 series.

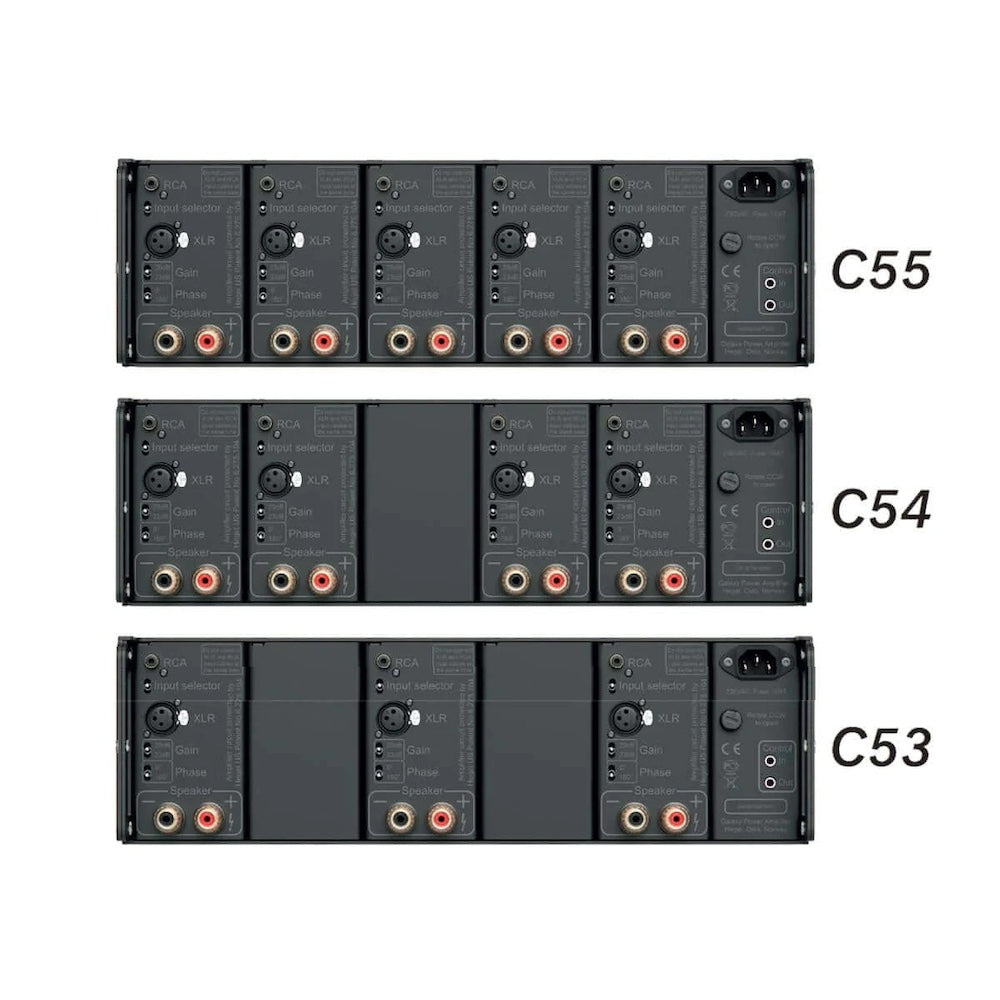

You can choose to have it as either a 3-channel, 4-channel or 5-channel configuration. Meaning you can build a 5.1 or Atmos theater using one or more C5’s. Perhaps you want to bi-amp speakers or use active cross overs? You could also use it to power multiple speakers in a mastering studio, in a restaurant or in a home. In short, wherever you need high-performance sound with dynamics and ultra-low distortion.
C5 uses the patented SoundEngine2 technology with its many benefits. One of them is the possibility to run low bias, meaning the high power class A/B amplifier do not run as warm as normal, allowing you to install it in a 19” rack. Another benefit of the SoundEngine2 is the very high damping factor (more than 2000). Higher damping factor means deep, deep bass and complete control of the bass drivers.
The ability to switch phase individually for each channel or selecting between different gain settings for each channel makes it so much easier to integrate into a larger system. The trigger input and output (allows daisy chaining) means you can place it in a separate room and never worry about switching it on or off.
Specifications:
- Power Output: 3 x 150/300/600 W into 8/4/2 ohms
- Minimum Load: 2 ohms
- Analog Inputs: 3 x balanced (XLR), 3 x unbalanced (RCA)
- Control Inputs: 1 x mini-jack 5-12 V trigger
- Control Outputs: 1 x mini-jack 11,9 V trigger out
- Gain Control: Switchable between 23 dB or 29 dB (individual)
- Phase Control: Switchable 1/180 (individual)
- Frequency Response: 5 Hz - 100 kHz
- S/N Ratio: More than 100 dB
- Crosstalk: Less than -100 dB
- Distortion: Less than 0.01% @ 100W 8 Ohms 1 kHz
- Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
- Damping Factor: More than 2000 (main power output stage)
Weights and Dimensions:
For C53:
Weight: 27.7kg / 61Ibs
H X W X D:
132 x 482 x 520 mm
5.2 x 18.97 x 20.47 in
C54:
Weight: 33.1kg / 73Ibs
H X W X D:
132 x 482 x 520 mm
5.2 x 18.97 x 20.47 in
C55:
Weight: 37.2kg / 82Ibs
H X W X D:
132 x 482 x 520 mm
5.2 x 18.97 x 20.47 in
