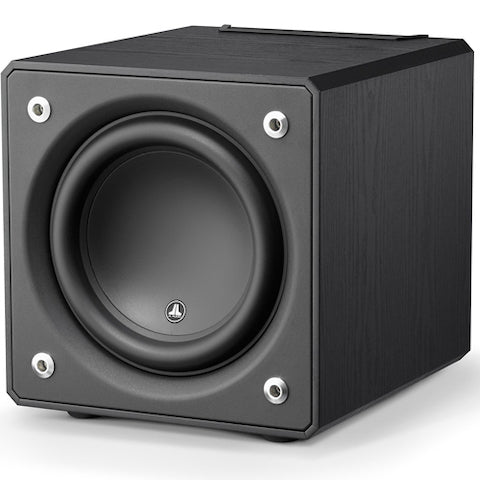

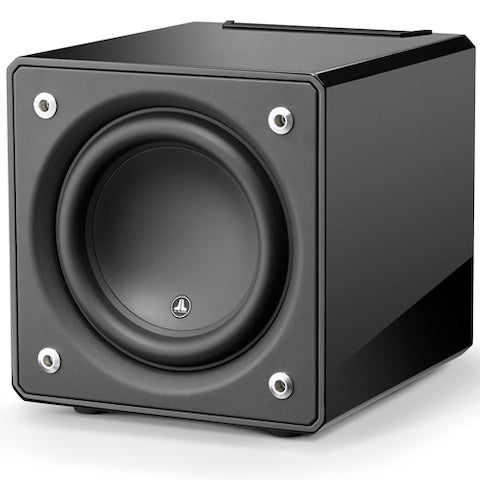

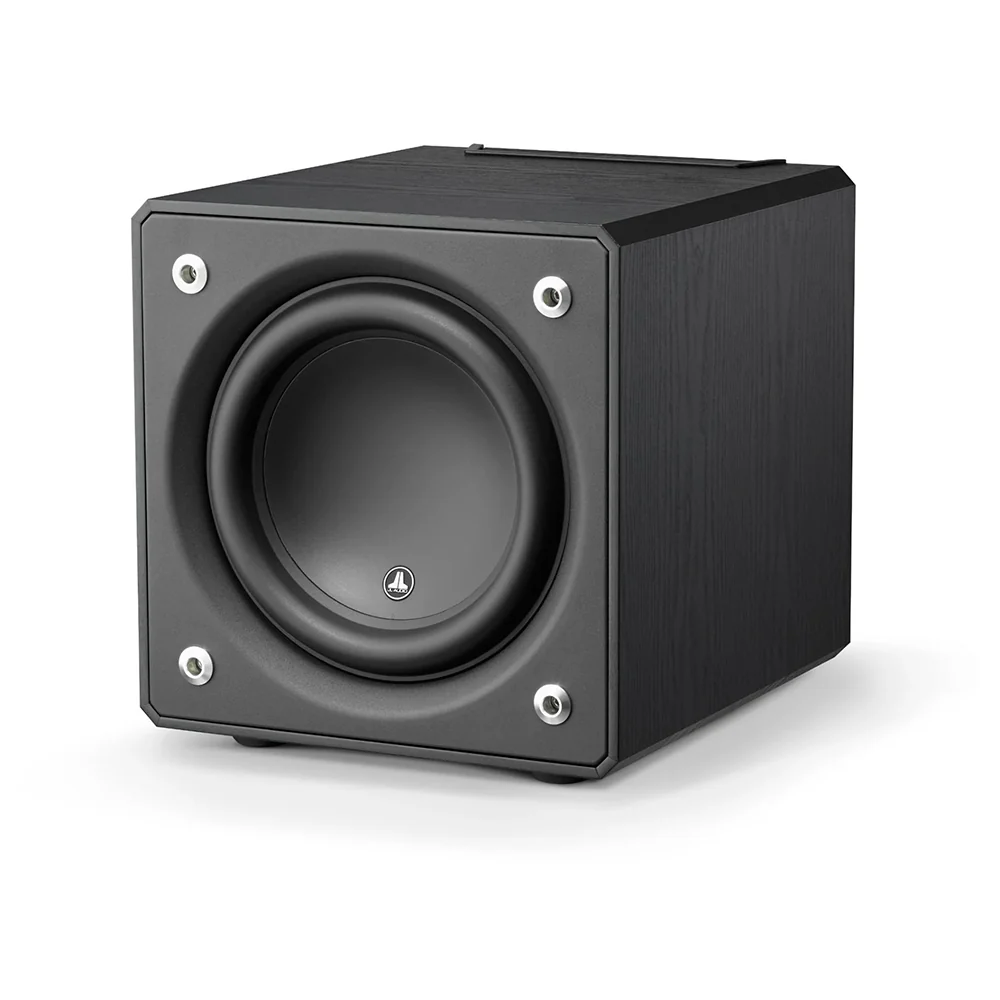

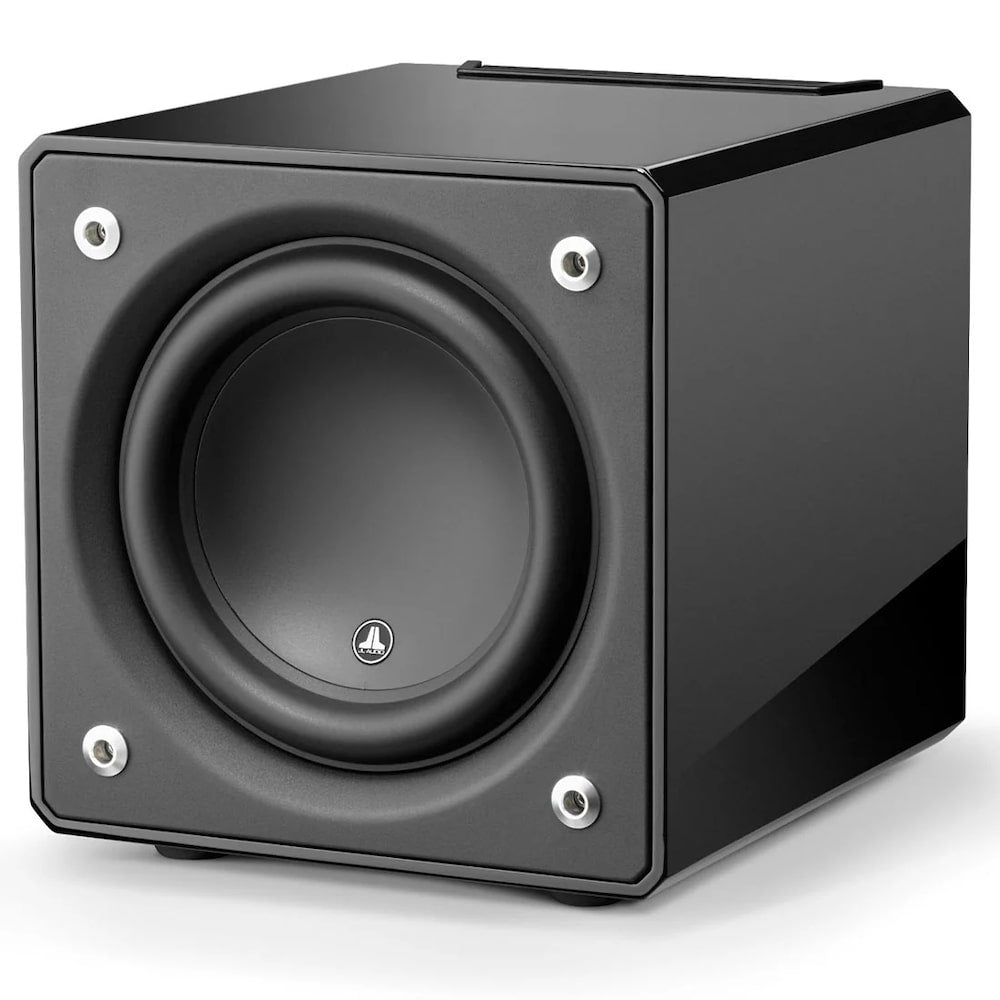

JL Audio E-Sub e110 Subwoofer delivers exceptional sound quality, power and value in a wide range of demanding applications. The extreme mounting depth of the E-Sub driver is very deliberate. It permits wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the E-Sub’s steel front mounting flange forms the entire front baffle of the finished product, while the driver’s back-plate is threaded and bolted to the rear wall of its enclosure for support.
Specifications:
| Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
| Balanced Inputs |
N/A |
| Speaker/High-Level Inputs |
Stereo or Mono (removeable plug) |
| Input Grounding |
Isolated or Grounded |
| Input Modes |
N/A |
| Level Control |
Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) |
Low-Pass |
| Filter Slope(s) |
24 dB/octave |
| Filter Frequency Range |
25 Hz - 130 Hz |
| Filter Defeat Function |
Yes |
| Polarity |
0 or 180 degrees |
| Phase |
Variable, 0- 280 degrees, referenced to 80 Hz |
| Extreme Low Frequency (E.L.F.) Trim |
N/A |
| Line Outputs |
Stereo or Mono (two RCA jacks), High-Pass or Pass-Through |
| Output to Slave |
N/A |
| Calibration Mode |
N/A |
| Enclosure Type |
Sealed |
| Enclosure Finish |
Black Gloss |
| Frequency Response (Anechoic) |
25 - 116 Hz (±1.5dB)
-3 dB at 23 Hz / 120 Hz
-10 dB at 18 Hz / 165 Hz
|
| Effective Piston Area (Sd) |
58.78 sq in / 0.0379 sq m |
| Effective Displacement |
131 cu in / 2.1 L |
| Amplifier Power |
1200 W RMS short-term |
| Power Mode(s) |
Off, On or Automatic (Signal-Sensing) |
| Light Modes |
N/A |
| Width (W) |
13.5 in / 343 mm |
| Height (H) |
14.24 in / 362 mm |
| Depth (D) |
16.51 in / 419 mm |
| Net Weight |
52.7 lb / 23.9 kg |
