| Model |
REFERENCE 2c |
| Design |
Three-way closed box |
| Drive Units |
Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 2 x165mm (6.5in.) aluminium |
| Frequency range free field (-6dB) |
65Hz - 45kHz |
| Frequency range typical in room bass response (-6dB) |
46Hz |
| Frequency response (±3dB) |
80Hz – 35kHz |
| Crossover frequency |
350Hz, 2.8kHz |
| Amplifier Requirements |
50 - 300W |
| Sensitivity (2.83V/ 1m) |
87.5dB |
| Harmonic distortion 2nd & 3rd harmonics (90dB, 1m) |
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz |
| Maximum output (peak sound pressure level at 1m with pink noise) |
113.5dB |
| Impedance |
8Ω (min. 3.2Ω) |
| Weight |
22.79kg (50.26lbs.) |
| Dimensions - with grille, terminal & plinth (H x W x D) |
205mm x 630mm x 325mm
(8.1 in x 24.8 in x12.8 in) |

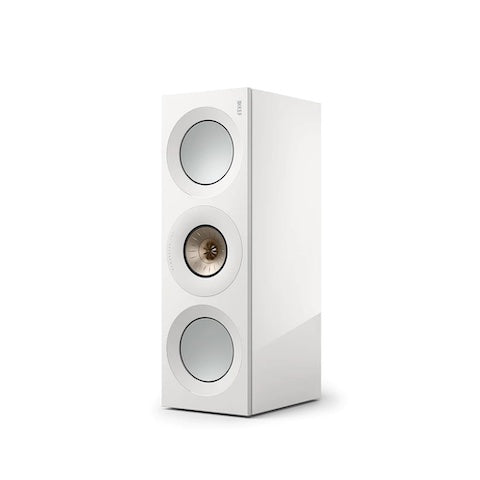

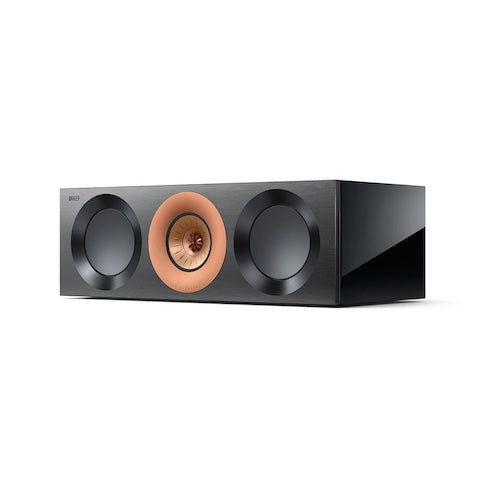

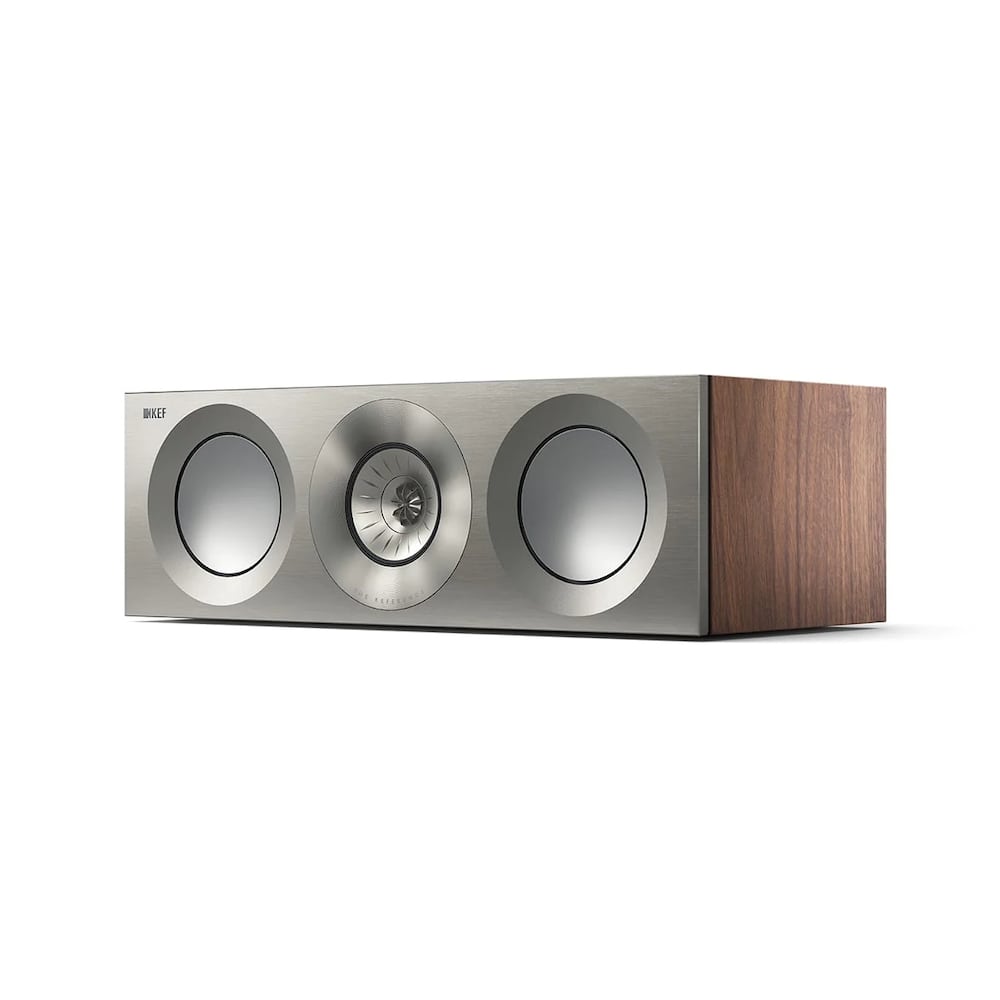

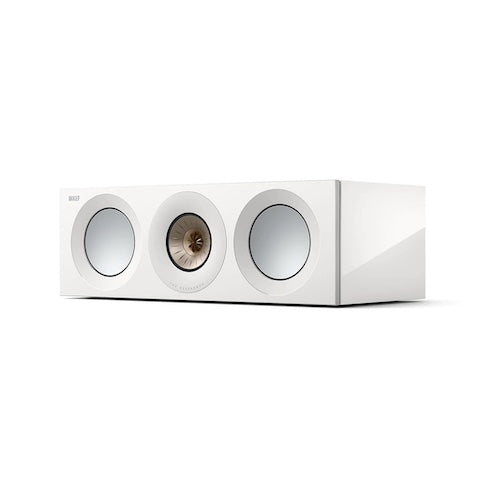

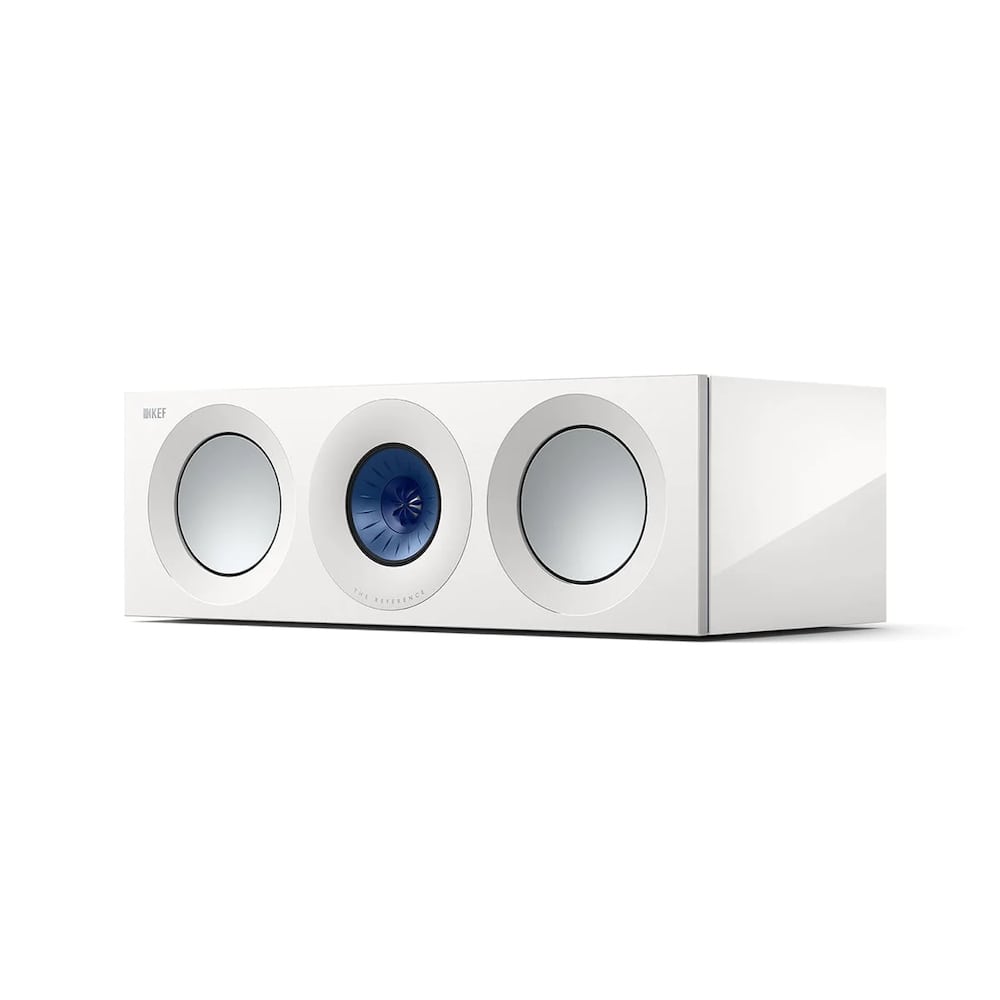

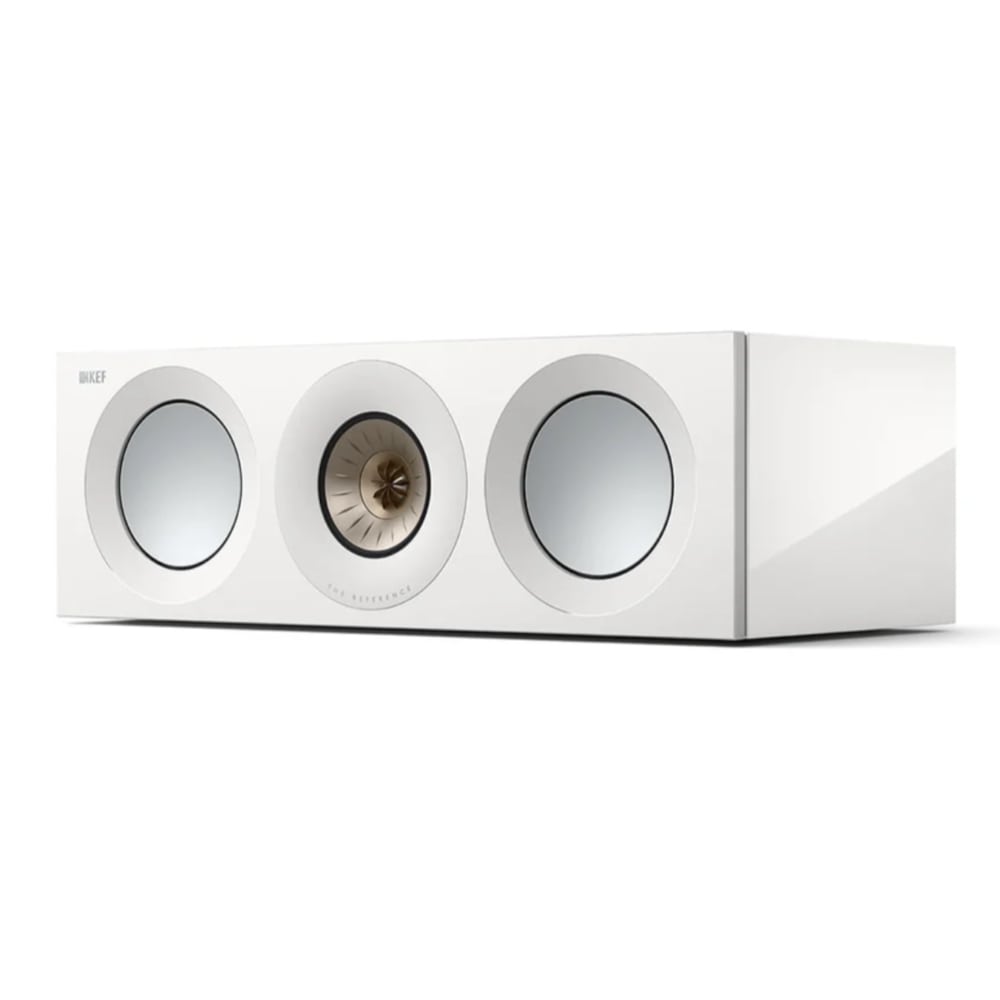

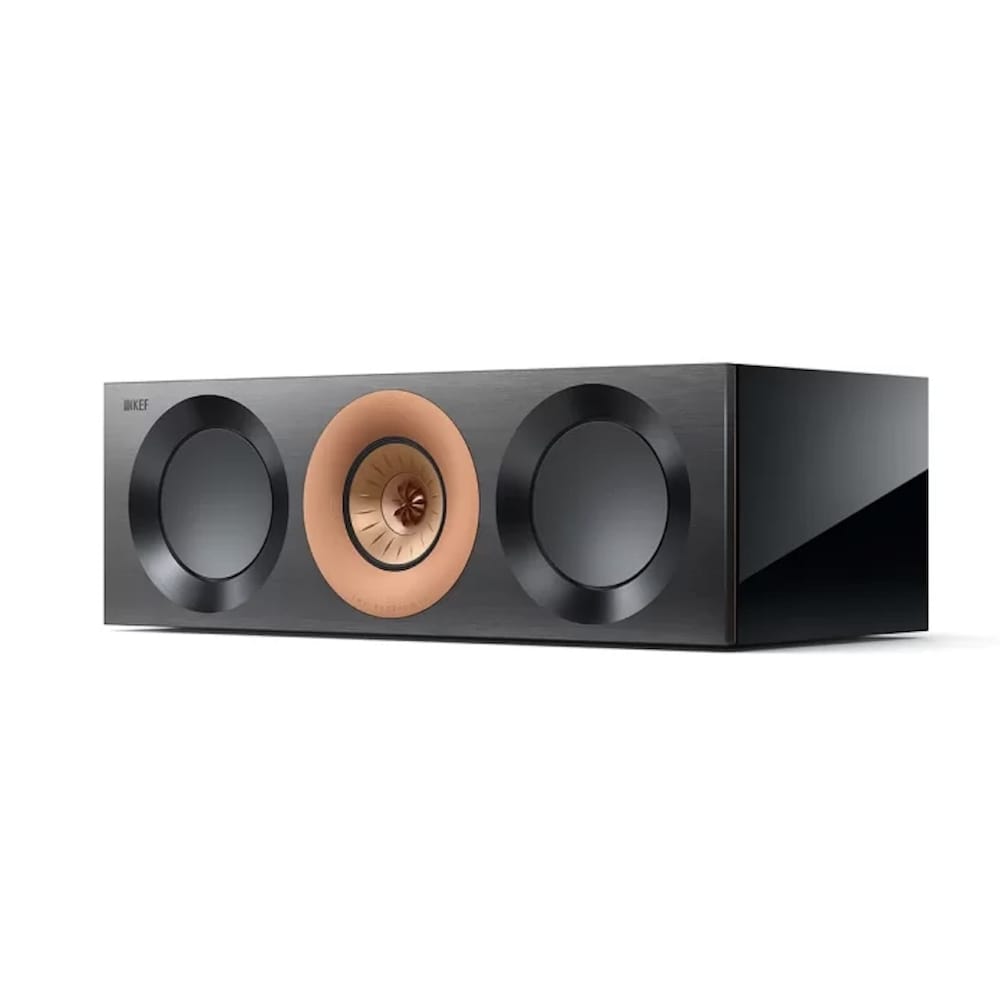

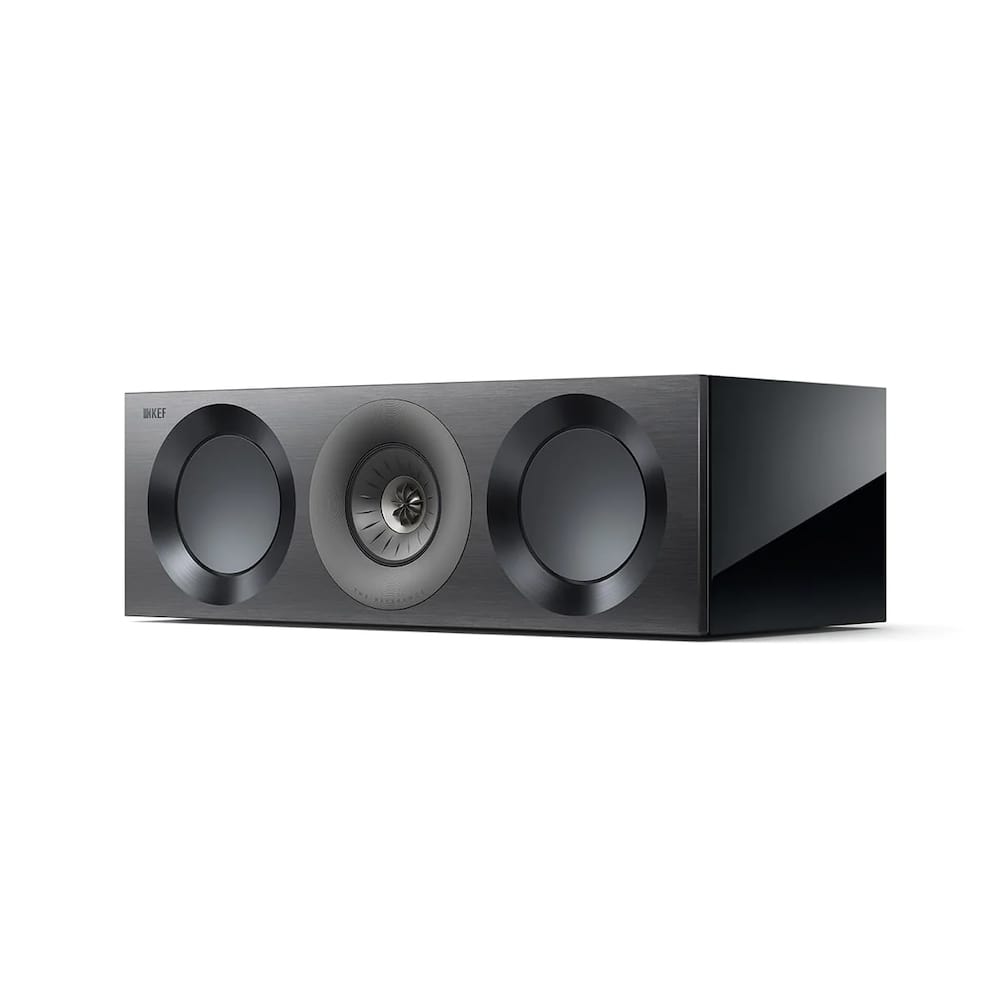

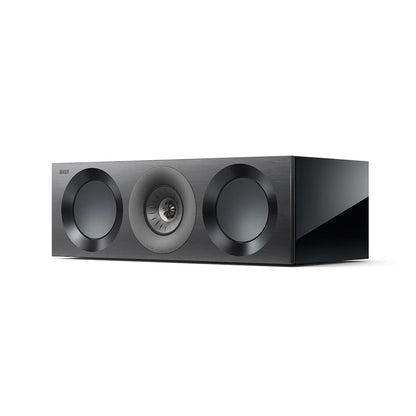

| Available Finishes |
Silver Satin Walnut, Copper Black Aluminum, Blue Ice White, Deep Gloss Black |
