The new Lumin P1 Mini is a versatile streamer, DAC and pre-amplifier. The P1 Mini features 5 analogue and digital inputs, a linear power supply and many other components taken from flagship players, LUMIN P1 Mini packs incredible versatility and value into its new slim chassis.
Features:
- Five inputs including USB, HDMI, SPDIF and Analogue
- HDMI with stereo input + AV Passthrough & ARC
- Dual ES9028PRO DACs
- DSD512 & PCM384
- Femto Clock System with precision FPGA distribution
- New internal toroidal linear power supply
- Dual Network with Optical Fibre Network support
- Leedh Processing lossless volume control
LUMIN P1 Mini takes many flagship features from the outstanding LUMIN X1 such as:
-
Fiber networking - optical networking provides complete isolation from network noise.
- Femto clocks - dual femto crystal oscillators and Lumin's proprietary FPGA clock distribution system first debuted in their X1.
- Infrared Remote Control - No chintzy apple style remote with the P1 Mini. Lumin's zinc and acrylic remote is made in Austria and exudes the style and gravitas that a component of this caliber deserves.
-
NETWORK PLAYBACK:
- Up to DSD512
- Up to 384 kHz, 16–32-bit, Stereo
- MQA Full Decoding
-
UPSAMPLING RATES & BIT DEPTHS:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files
-

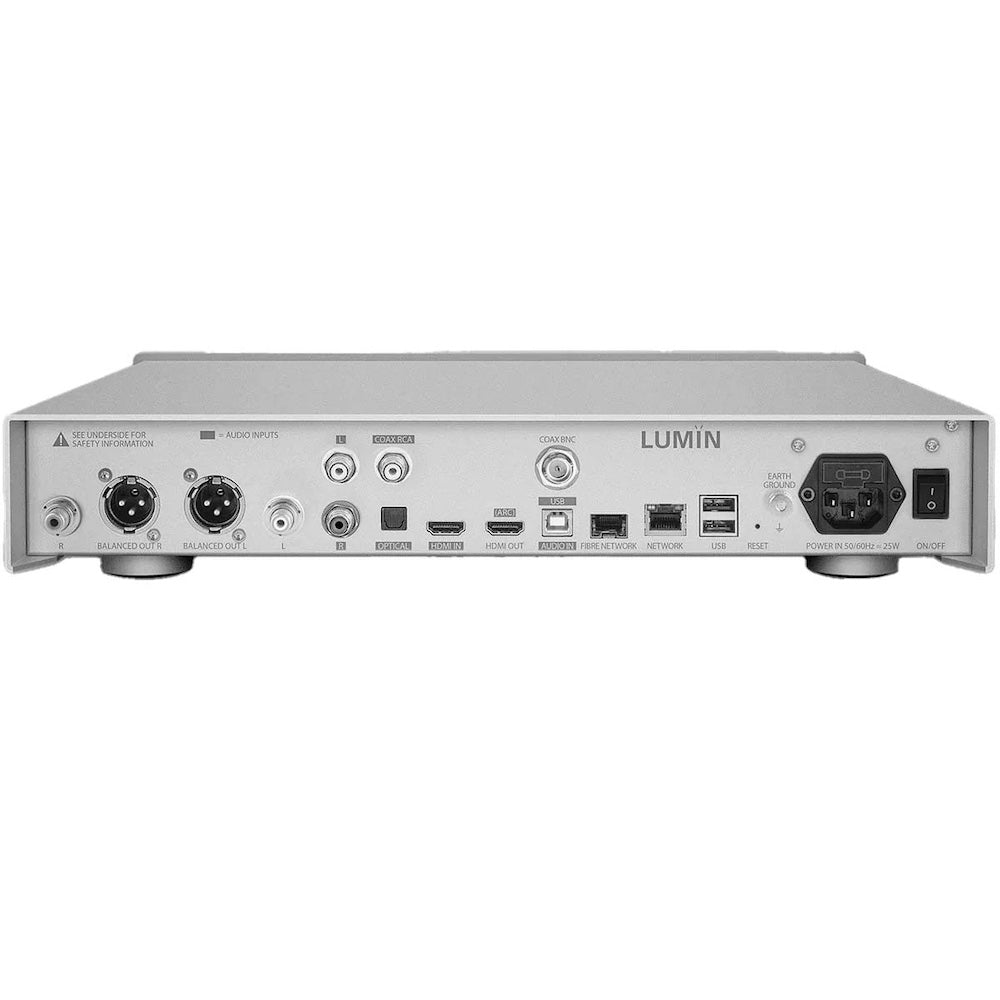

DIGITAL INPUT:
-
USB:
- USB Audio Class 2 Compatible
- WINDOWS 10 (Release 1703 or above) / Mac OSX or above
- DoP 128 support
- PCM 44.1–384 kHz, 16 / 32-bit, Stereo
-
OPTICAL/SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:
- PCM 2.0 Audio support
- 4K Video Passthrough
-
DIGITAL OUTPUT:
-
USB:
- Native DSD512 support
- PCM 44.1–384 kHz, 16–32-bit, Stereo
-
BNC SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:(HDMI PASSTHROUGH AND ARC SUPPORT)
- PCM 2.0 Audio support
- 4K Video Passthrough
- ARC (Audio Return Channel) support
-
ANALOGUE INPUT:
-
ANALOG OUTPUT:
- Dual ESS SABRE32 ES9028Pro DAC chips
- Fully balanced layout with high-quality components
- Femto Clock System with precision FPGA distribution
-
OPTICAL NETWORK:
- Industry-standard Gigabit SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
POWER SUPPLY:
- Internal toroidal linear
- Low-noise linear regulator
-
PHYSICAL
-

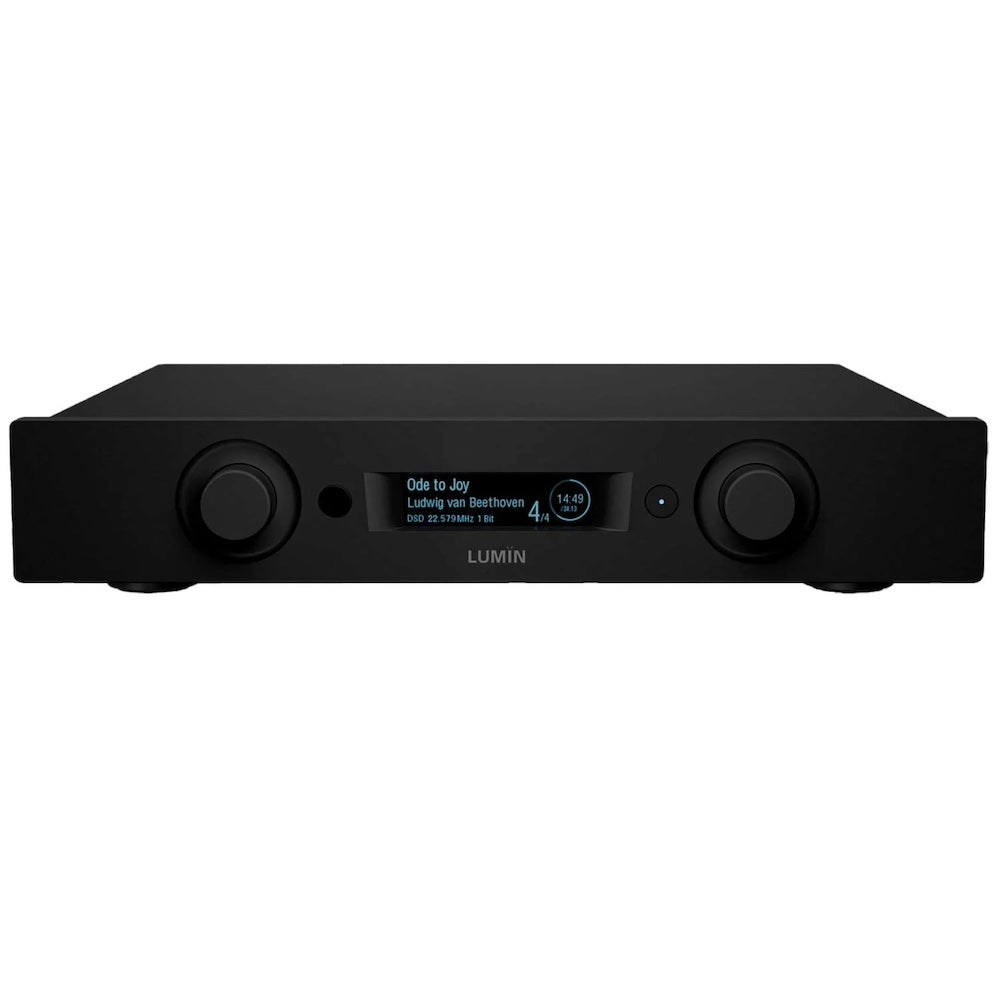

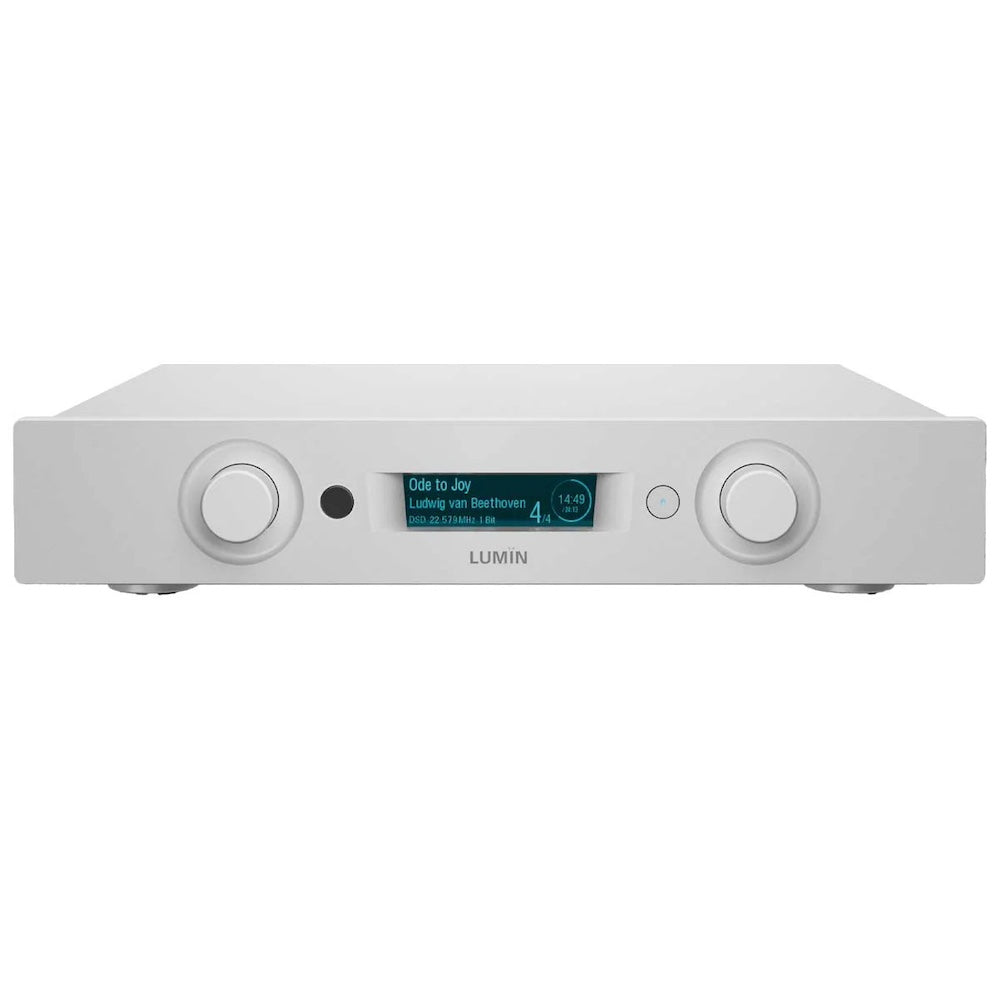

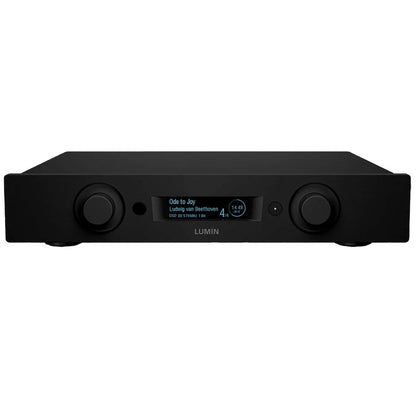

FINISH:
- Black anodised aluminium
- Raw anodised aluminium
LUMIN (SOLID ALUMINIUM CHASSIS):
- 400mm (W), 314mm (D), 77mm (H), 7kg
