Please Contact Us For Availability. Thank you.
PLEASE NOTE: The firmware upgrade is included at no additional cost. It adds the Region Free and ISO options.
The new Magnetar Audio UDP900 features a 6-layer gold immersion main PCB circuit with a high precision power supply, the UDP-900 comes with Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors which further improve audio and video quality. Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring and equipped with Hi-Fi XLR balanced terminals and gold plated RCA outputs providing better Audiophile sound quality.
The UDP900 features dual Dac chips. The ESS Sabre ES9038PRO DAC for 2-channel XLR balanced and RCA unbalanced outputs and Sabre ES9028PRO DAC for 7.1 RCA output. XMOS USB Audio support.

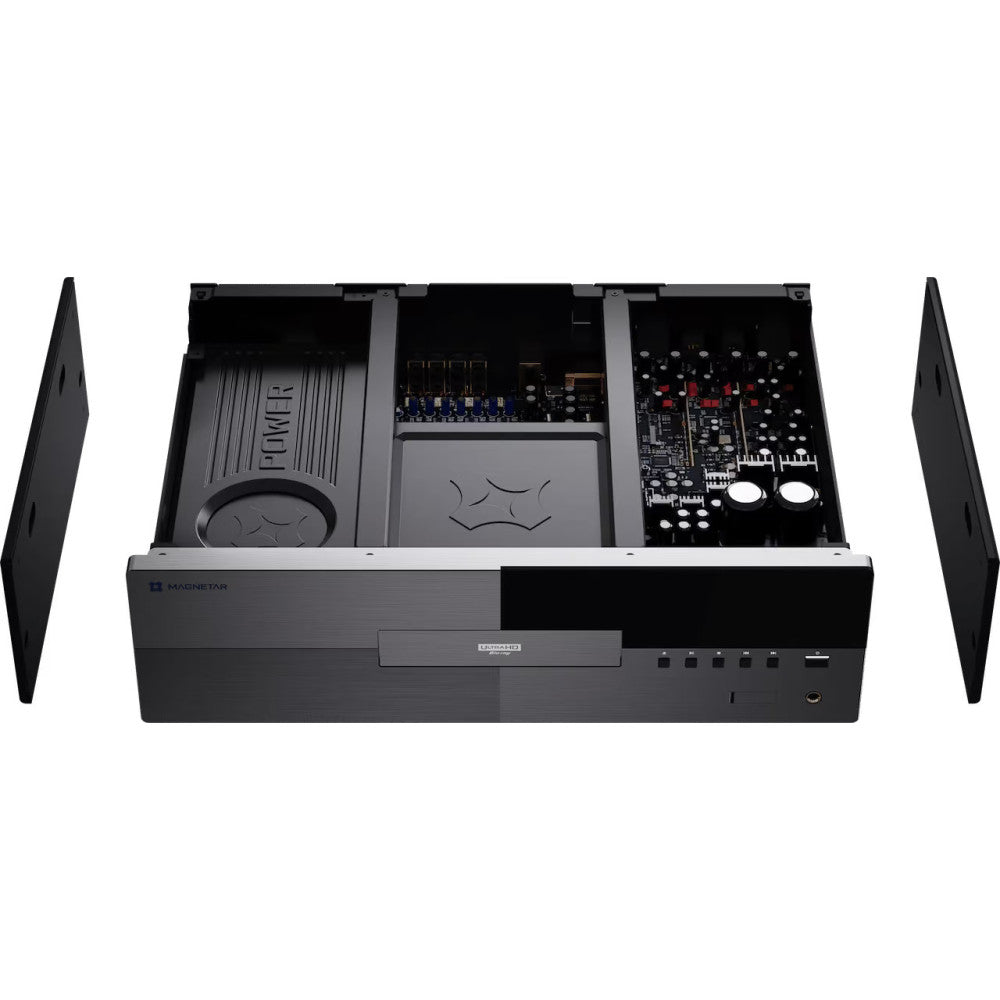

The UDP900 adopts an all-aluminum alloy body with a reinforced double layer chassis structure. The internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality. Weight is 34 pounds.
Also included is a specially selected a dual power supply. One 60W toroidal transformer for analog audio, using high quality oxygen free copper wiring and metal shields to reduce vibration noise and generated heat and one 60W high-power low noise transformer with high transient response required by surround sound and high-resolution audio for the digital main board section. A separate metal case reduces noise, providing stability and silence, improving audio and video quality.
The UDP900 has eye-popping brightness, contrast and gorgeous colors. Picture is rich and full, with vivid colors, even in low light and backlight environment. UDP900 supports HDR10, HDR10+ and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support.
Premium parts include high-quality, oxygen-free copper wiring, capacitors from Murata, NCC, ELNA, WIMA, and Rubycon and TDK magnetic devices, all on four-layer PCBs. Video processing is provided by a Mediatek MT8581 SoC (System on a Chip), which is used by many BD player manufacturers. It’s situated on a separate video board underneath the two-channel audio board.
The UDP900 is fully compatible with a variety of disc formats, including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD and CD-R/RW. Additionally, it can easily connect to numerous media resources through USB 3.0 and supports up to a 16TB hard drive. It allows for sharing video, music and picture files through DLNA, SMB and NFS protocols while supporting a wide range of media formats such as MKV , AVI , MP4 , WAV , FLAC , APE , DSD etc. It enables users to effortlessly play and manage media files stored locally or on LAN devices.
Two Year Warranty.
Specifications:
| Disc type |
| Disc type |
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE |
| OUTPUT |
| Analog Audio Output |
7.1chanel RCA, 2-channel RCA and Balanced XLR |
| Digital Audio Output |
Optical, Coaxial, HDMI |
| HDMI Video Output |
4K / 1080P / 1080I / 720P / 576P / 576I / 480P / 480I |
| Output |
Support up to 7.1 channel 192kHz PCM, 5.1 Channel DSD |
| Analog audio characteristics |
| Frequency range |
20Hz-20kHz (±03dB) |
| Signal-to-noise ratio |
≥120dB(2CH RCA); ≥130dB(2CH XLR) |
| Distortion plus noise |
≤0005% |
| Output amplitude |
(RCA) 2. 1±2Vrms. (XLR) 4.2±0.4Vrms |
| Dynamic range |
≥120dB(2CH RCA); ≥130dB(2CH XLR) |
| Channel resolution |
≥110dB(2CH RCA); ≥140dB(2CH XLR) |
| General specification |
| Power supply |
AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz |
| Power consumption |
<40W, Standby<0.5W |
| Dimensions |
445 x 321 x 133 mm |
| Weight |
15.5kg |
| Operating Temperature |
5°C~ 35°C （41°F ~ 95°F） |
| Operating Humidity |
15% – 75% |
