Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.
The 11A features a dual 8-inch woofer system, with ARC-honed performance, for a perfectly blended low-frequency response. The groundbreaking integration of this woofer array and MartinLogan’s signature 11-inch wide XStat CLS transducer, coupled with a powerful dual amplifier section, delivers an expressive and dynamic audio experience. It's an experience of pure audio pleasure.
Advanced MicroPerf stator technology, which allows for almost twice the exposed electrostatic diaphragm surface as a traditional electrostatic panel of the same size. A reinforced electrostatic panel with rigid ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add to these the slender, pointed-arrow design of the new AirFrame™ Bladeconstruction and the result is a powerfully evocative composition creating a harmonious connection between the panel and its woofer cabinet.
Inspired by our own breakthrough design, we have reinvented the Impression ESL 11A woofer section, powered by new dual 275-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).
Using two 8-inch laser-engineered low-distortion aluminum cone woofers in independently enclosed compact chambers, exclusive PoweredForce Forward™ bass alignment technology controls the interaction between the rear-firing woofer and the wall behind that woofer. With a smart phase-shifting design, we minimize the effect that wall has on bass information that might bounce back into the listening room. This uniform frequency response results in realistic bass effects you can feel. It’s one more way MartinLogan innovation improves your listening experience in any room.
Priced Per Pair.

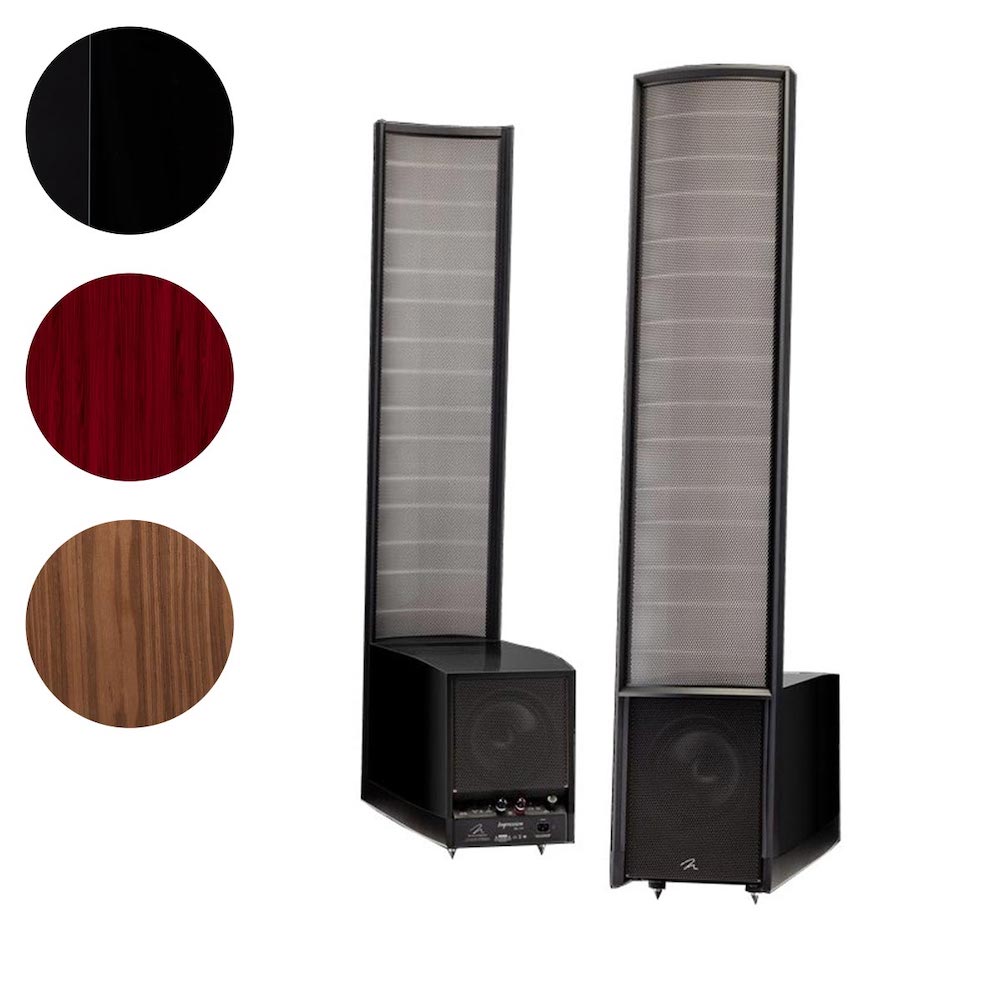

Finish Options:
Gloss Black Dark Cherry Walnut
Premium Finish Options. Please contact us.
Rosso Fuoco Cordoba Red Deep Sea Blue Basalt Black
(Gloss Red) (Gloss Metallic Maroon) (Gloss Metallic Blue) (Gloss Metallic Black)
Meteor Grey Desert Silver Arctic Silver
(Gloss Metallic Silver, Dark) (Gloss Metallic Silver, Tan tint) (Gloss Metallic Silver, Light)
Specifications:
|
Frequency Response
|
29–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—550 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
44" (112cm) line source
|
|
Sensitivity
|
91 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms, 0.6 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
300Hz
|
|
High Frequency Transducer
|
XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 11" (112 x 28cm) » Radiating Area: 484 in² (3,136 cm² )
|
|
Low Frequency Transducer
|
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.
|
|
Amplifier
|
Woofer: 2 x 275 watts/channel (4 ohms), 2 x 550 watts peak
|
|
Room Correction (Bass Section)
|
Anthem Room Correction (ARC™) ready (Sold Separately)
|
|
Components
|
Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).
|
|
Audio Controls
|
Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db ARC™ Room EQ: On, Off
|
|
Signal Inputs
|
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
|
|
Inputs
|
AC Power, RJ45 (for ARC), mini USB (for ARC)
|
|
Power Draw
|
Idle: < 1W/channel Max: 500W/channel
|
|
Weight
|
90 lbs. (40.9 kg)
|
|
Dimensions
|
60.75" x 11.9" x 27.4 " (154.3cm x 30.2cm x 69.6cm)
|
