The new TOT series including two compact and affordable products packed with performance and features.
The TOT Mini, rated at 7 Amps, is ideal to provide clean power to Audio/Video systems, projectors, flat panels, powered speakers, media/ source players, processors, or network devices.

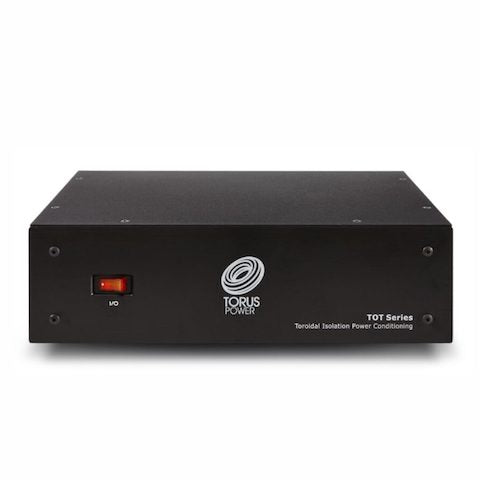

The TOT Max, rated at 15 Amps, can provide current to demanding power hungry systems including substantial power amplifiers.

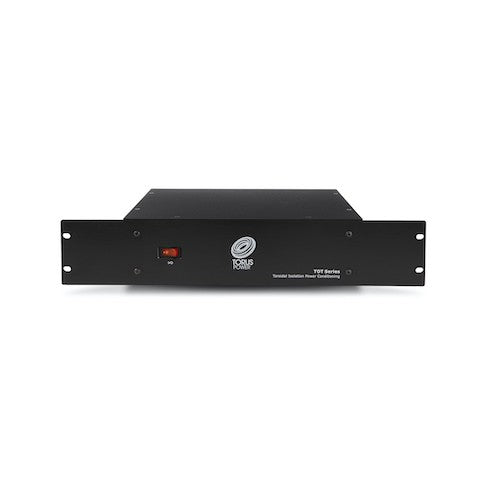

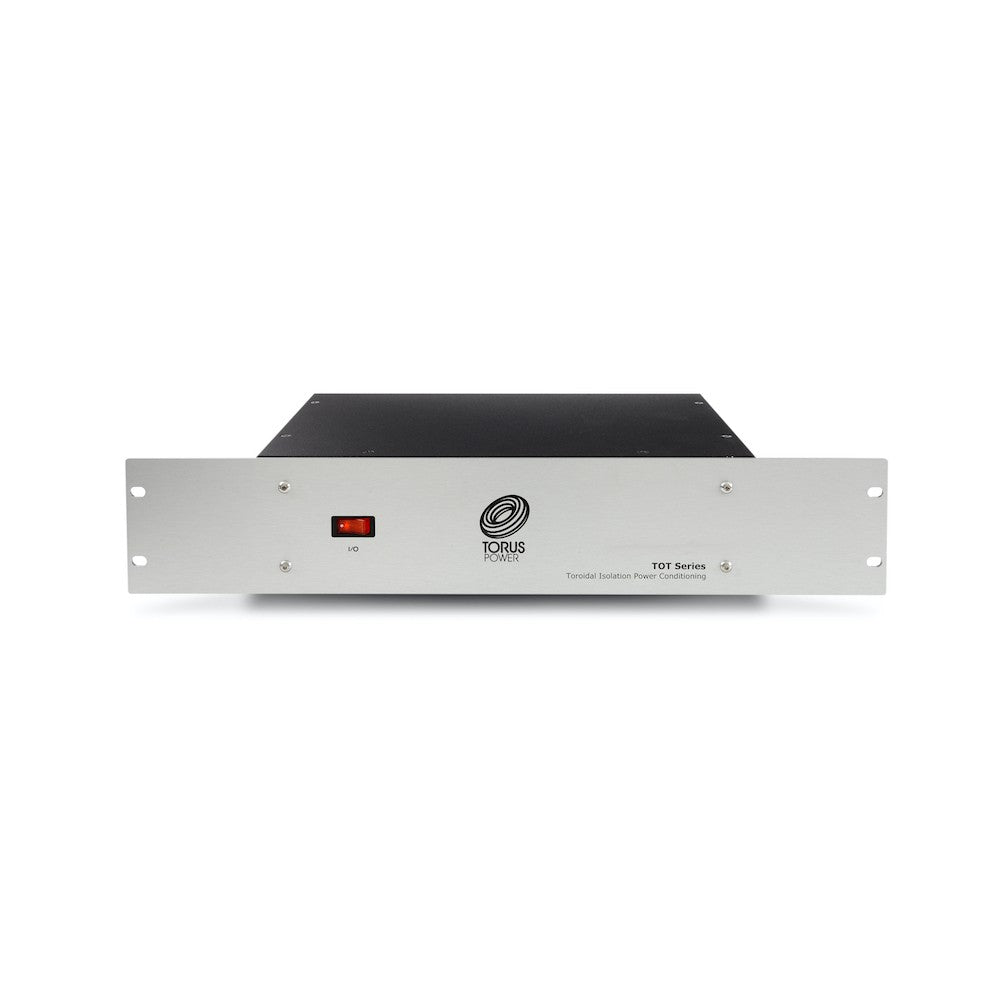

All TOT models feature a courtesy USB charger outlet. Options include a dress aluminum faceplate (Black or Silver) and a 19” rack mount adapter kit. TOT units include circuit protection through a replaceable varistor. Torus Power non-sacrificial Series Mode Surge Suppression (SMSS) is also available as a factory-installed option. Available in Black or Silver.
Please contact us for Bundle Pricing with any Audio Note, Audience, Audioquest or Puritan Power Cord(s). Thank you.
TOT Mini MSRP is $2099
TOT Mini With SMSS MSRP is $2499
TOT Max MSRP is $2499
TOT Max With SMSS MSRP is $2899

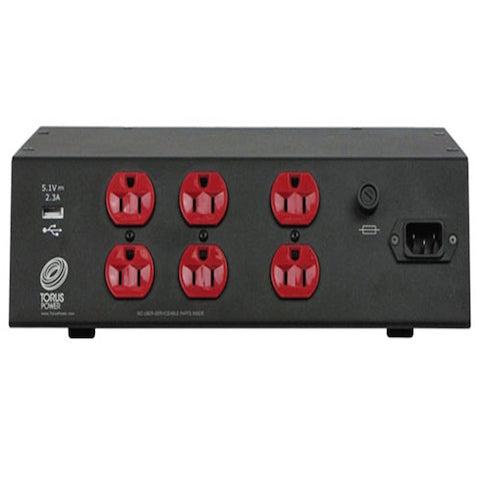

TOT Mini Specifications:
| CONFIGURATION |
SHELF MODEL |
19″ RACK MOUNT (RK) |
| CHASSIS |
2U |
| INPUT VOLTAGE |
120V |
| OUTPUT VOLTAGE |
120V |
| INPUT CIRCUIT BREAKER |
1 X 8A FUSE |
| OUTPUT CURRENT |
7A |
| POWER RATING |
805VA |
| FREQUENCY |
60Hz |
| NO. OUTLETS |
6 |
| INLET TYPE |
IEC 15A |
| OUTLET TYPE |
3 DUPLEX 5-15R |
| WEIGHT KG |
11.6 |
12 |
| WEIGHT LBS |
25.5 |
26.4 |
| DIMENSIONS W X H X D MM |
318 X 101 X 268 |
480 X 88 X 271 |
| DIMENSIONS W X H X D IN |
12.5 X 4.0 X 10.5 |
18.9 X 3.4 X 10.7 |
|

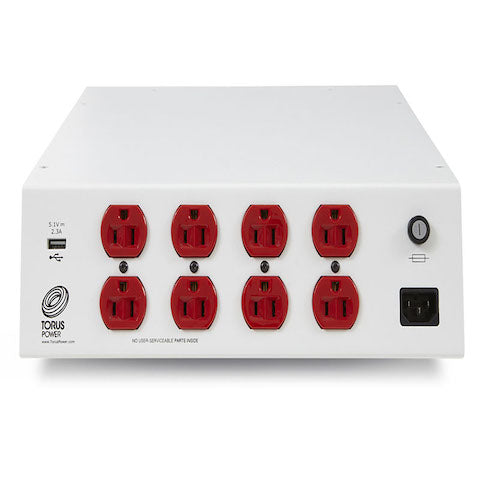

TOT Max Specifications:
| CONFIGURATION |
STAND ALONE |
19″ RACK MOUNT (RK) |
| CHASSIS |
2U |
| INPUT VOLTAGE |
120V |
| OUTPUT VOLTAGE |
120V |
| INPUT CIRCUIT BREAKER |
1 X 15A FUSE |
| OUTPUT CURRENT |
15 A |
| POWER RATING |
1725VA |
| FREQUENCY |
60Hz |
| NO. OUTLETS |
8 |
| INLET TYPE |
IEC 15A |
| OUTLET TYPE |
4 DUPLEX 5-15R |
| WEIGHT KG |
17.7 KG |
18.1 KG |
| WEIGHT LBS |
38.9 LBS |
39.8 LBS |
| DIMENSIONS W X H X D MM |
318 X 101 X 369 |
480 X 88 X 373 |
| DIMENSIONS W X H X D IN |
12.5 X 4.0 X 14.5 |
18.9 X 3.4 X 14.7 |
|
